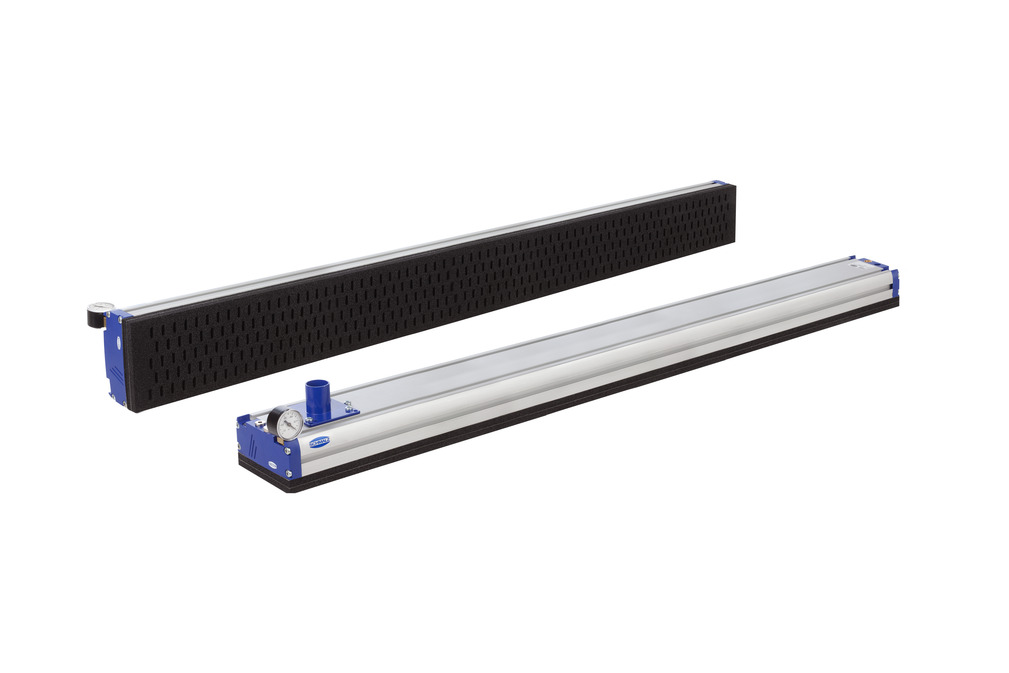

FMP-SW60 1036 5R18 O10O10 G60
Part no.: 10.01.38.03075
Vacuum area gripping system for external vacuum generator, with flow resistors
| Length L | 1036 (mm) |
| Width B | 130 (mm) |
| Arrangement | 5R18 |
| Shape fittings | Straight |
| Outside diameter D | 60 (mm) |
| Weight | 4.2 (kg) |
| Product family | FMP |

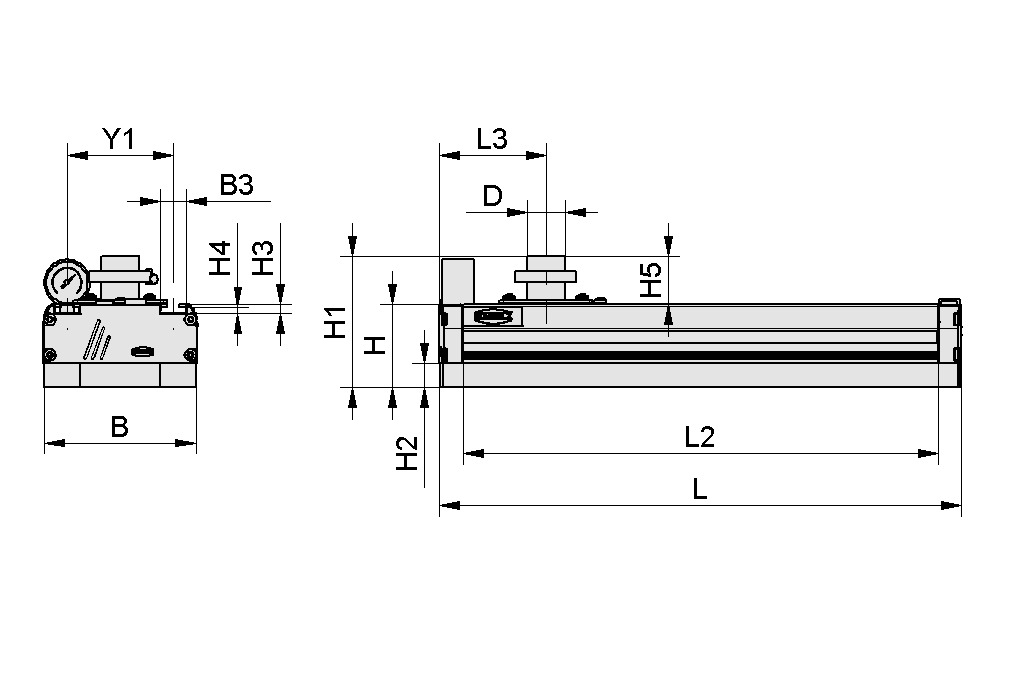

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 130 mm |
| B3 | 21.6 mm |
| D | 60 mm |
| H | 70 mm |
| H1 | 116 mm |
| H2 | 20 mm |
| H3 | 7.7 mm |
| H4 | 5.5 mm |
| H5 | 46 mm |
| L | 1,036 mm |
| L2 | 996 mm |
| L3 | 90 mm |
| Y1 | 90 mm |
| Valve type | SW |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Arrangement | 5R18 |
| Number of suction cells | 275 |
| Suction force at -250 mbar | 840 N |
| Weight | 4.2 kg |
| Sealing element | Sealing Foam |
| Required suction capacity for pu = -0.25 bar | 750 l/min |
| Product family | FMP |
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Spare parts
MASK-FOL SW60 996 5R18 FXP-FMP10.01.38.02178Front foil
| Length L | 996 (mm) |
| Width B | 109.8 (mm) |
| Height H | 0.4 (mm) |
| Arrangement suction cells | 5 rows, 18 mm |
| Measuring range [bar] | bar |
| Nozzle diameter | 0.6 (mm) |
| Utilization design | Vacuum area gripping system FXP-FMP |
DI-PL 1036-5R18 O10O10 FXP-FMP10.01.38.02391Sealing plate
| Length L | 1036 (mm) |
| Width B | 128 (mm) |
| Height H | 20 (mm) |
| Utilization design | Vacuum area gripping system FXP-FMP |
Accessories
ABDK-PROF-10x7x1450-KU-SW-FXP-FMP26.07.03.00002Cover Profile
| Length L | 1450 (mm) |
| Width B | 10 (mm) |
| Height H | 7 (mm) |
| Material | Plastics |
| Color | black |
| Measuring range [bar] | bar |
| Utilization design | Vacuum area gripping system FXP-FMP |
EMVP 50 24V-DC 3/2 NO10.05.02.00069Solenoid valve EMVP for vacuum,
pneumatic pilot control
| Nominal size | 50 (mm) |
| Nominal flow at 0.1 bar | 310 (m³/h) |
| Voltage DC | 24 V - DC |
| Function valve | 3/2 multiway valve |
| Control valve | Normally open |
| Connection thread | G2"-F |
| Pressure range (operating pressure) [bar] | -0.95 ... 0.00 bar |
| Weight | 1.36 (kg) |
FLAN-PL 120x85x10 ST FLGR10.01.10.05701Flange plate
| Length L | 120 (mm) |
| Width B | 85 (mm) |
| Height H | 10 (mm) |
| Material | Steel |
| Utilization design | Vacuum area gripping system |
FLK G1/2-IG G1/2-AG10.01.03.00175Flexible suction cup mounting for
adaptation to sloping surfaces
| Thread G1 | G1/2"-F |
| Thread G2 | G1/2"-M |
| Operating temperature | 0 ... 70 °C |
FST-FLEX 25 HD1 G1/2-AG G3/8-IG10.01.10.05697Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 25 (mm) |
| Shape mounting elements | Heavy duty 1 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-FLEX 25 HD2 G1/2-AG G3/8-IG10.01.10.05695Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 25 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-FLEX 50 HD1 G1/2-AG G3/8-IG10.01.10.05687Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 50 (mm) |
| Shape mounting elements | Heavy duty 1 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-FLEX 50 HD2 G1/2-AG G3/8-IG10.01.10.05168Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 50 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-FLEX 75 HD1 G1/2-AG G3/8-IG10.01.10.05698Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 75 (mm) |
| Shape mounting elements | Heavy duty 1 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-FLEX 75 HD2 G1/2-AG G3/8-IG10.01.10.05696Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 75 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-STARR 25 HD1 G1/2-AG G3/8-IG10.01.10.05810Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 25 (mm) |
| Shape mounting elements | Heavy duty 1 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-STARR 25 HD2 G1/2-AG G3/8-IG10.01.10.05806Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 25 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-STARR 50 HD1 G1/2-AG G3/8-IG10.01.10.05809Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 50 (mm) |
| Shape mounting elements | Heavy duty 1 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-STARR 50 HD2 G1/2-AG G3/8-IG10.01.10.05805Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 50 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-STARR 75 HD1 G1/2-AG G3/8-IG10.01.10.05808Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 75 (mm) |
| Shape mounting elements | Heavy duty 1 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-STARR 75 HD2 G1/2-AG G3/8-IG10.01.10.05803Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 75 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
MOD-FLAN 120x120 FXP-FMP10.01.21.00244Flange module
| Length L | 120 (mm) |
| Width B | 120 (mm) |
| Height H | 60 (mm) |
| Measuring range [bar] | bar |
| Thread G1 | G1/2"-F |
| Weight | 1.1 (kg) |
| Utilization design | Vacuum area gripping system FXP-FMP |
SET FXC-FMC10.01.21.01291Mounting set
| Length L | 119 (mm) |
| Width B | 119 (mm) |
| Height H | 9.6 (mm) |
| Measuring range [bar] | bar |
| Thread G1 | G1/2"-F |
| Utilization design | Vacuum area gripping system FXC-FMC |
SET FXP-FMP10.01.21.02407Mounting set
| Length L | 232 (mm) |
| Width B | 119 (mm) |
| Height H | 119 (mm) |
| Measuring range [bar] | bar |
| Weight | 1.3 (kg) |
| Utilization design | Vacuum area gripping system FXP-FMP |
SET FXP-FMP 4NUTSTEIN G2010.01.21.00243Mounting set
| contains | 4 sliding blocks |
| Measuring range [bar] | bar |
| Utilization design | Vacuum area gripping system FXP-FMP |
STF 60 P 4.5 SSD10.07.01.00259Dust filter
| Connection | Ø60mm |
| Shape | Piclon housing |
| Nominal flow rate | 270 (m³/h) |
| Filter pore size | 3 (µm) |
| Additional equipment | Hose clamps SSD |
VAM 40 V U BAR10.07.02.00046Vacuum gauge (manometer)
for analogue measurement and
monitoring of the vacuum
| Width B | 23 (mm) |
| Height H | 46 (mm) |
| Outside diameter D | 40 (mm) |
| Measuring range [bar] | -1,00 ... 0,00 bar |
| Shape manometers | Connection at bottom |
| Thread G1 | G1/8"-M |
| Weight | 0.06 (kg) |
VENT-EINH 8/6 NC 24V-DC10.01.21.02405Valve unit
| Connection | Hose 8/6 |
| Control valve | Normally closed |
| Utilization design | Vacuum area gripping system FXP-FMP |
VSL 71-60 PU-DS-AS TR10.07.09.00034Hose for vacuum and
compressed-air systems
| Outside diameter D | 71 (mm) |
| Internal diameter d | 60 (mm) |
| Length max. | 20 (m) |
| Material hose | PU, wire spiral, antistatic |
| Bending radius min. | 40 (mm) |
| Pressure range (operating pressure) [bar] | -0.69 ... 2.09 bar |
| Operating temperature | -40 ... 90 °C |
| Color | Transparent |
VS-MONT 50x15.8x25 VS10.06.02.00343Vacuum switch (inst)
| Length L | 50 (mm) |
| Width B | 15.8 (mm) |
| Height H | 25 (mm) |
| Special function | Can be mounted upright |
| Measuring range [bar] | bar |
| Utilization design | Vacuum switch |
VS-MONT 76.5x19 VSi FXP-FMP10.01.38.02485Vacuum switch (inst)
| Length L | 76.5 (mm) |
| Width B | 19 (mm) |
| Special function | Can be mounted upright |
| Additional function area gripper | Vacuum and pressure switch VSi |
| Measuring range [bar] | bar |
| with | Vacuum and pressure switch |
| Utilization design | Vacuum area gripping system FXP-FMP |
VTR-SL 3x RST6010.01.10.02779Vacuum distributor with
hose connector
| Length L | 439 (mm) |
| Width B | 100 (mm) |
| Height H | 156 (mm) |
| Connection | Tube end Ø60 |
FLAN-PL 120x120x10 FXC-FMC10.01.21.00313Flange plate
| Length L | 120 (mm) |
| Width B | 120 (mm) |
| Height H | 10 (mm) |
| Measuring range [bar] | bar |
| Utilization design | Vacuum area gripping system FXC-FMC |
FLK G1/2-IG G1/2-AG V10.01.03.00207Flexible suction cup mounting for
adaptation to sloping surfaces
| Thread G1 | G1/2"-F |
| Thread G2 | G1/2"-M |
| Operating temperature | 0 ... 70 °C |
| Shape mounting elements | reinforced |
SCHL-AN W 60-79x79x45 FMP10.01.38.00300Hose connector - 90° pre-assemb
| Length L | 79 (mm) |
| Width B | 79 (mm) |
| Height H | 45 (mm) |
| Hole spacing X1 | 62 (mm) |
| Hole spacing Y1 | 50 (mm) |
| Outside diameter D | 60 (mm) |
| Utilization design | Vacuum area gripping system FMP |
SCHL-AN 60-79x79x45 FMP10.01.38.00301Hose connector - straight pre-assemb
| Length L | 79 (mm) |
| Width B | 79 (mm) |
| Height H | 45 (mm) |
| Hole spacing X1 | 62 (mm) |
| Hole spacing Y1 | 50 (mm) |
| Outside diameter D | 60 (mm) |
| Utilization design | Vacuum area gripping system FMP |
VRS-PL 79x79x12 SPZ G2-IG10.01.21.01280Sealing plate - pre-assembly
| Length L | 79 (mm) |
| Width B | 79 (mm) |
| Height H | 12 (mm) |
| Thread G1 | G2"-F |
| Utilization design | Schmalz palletizer |
