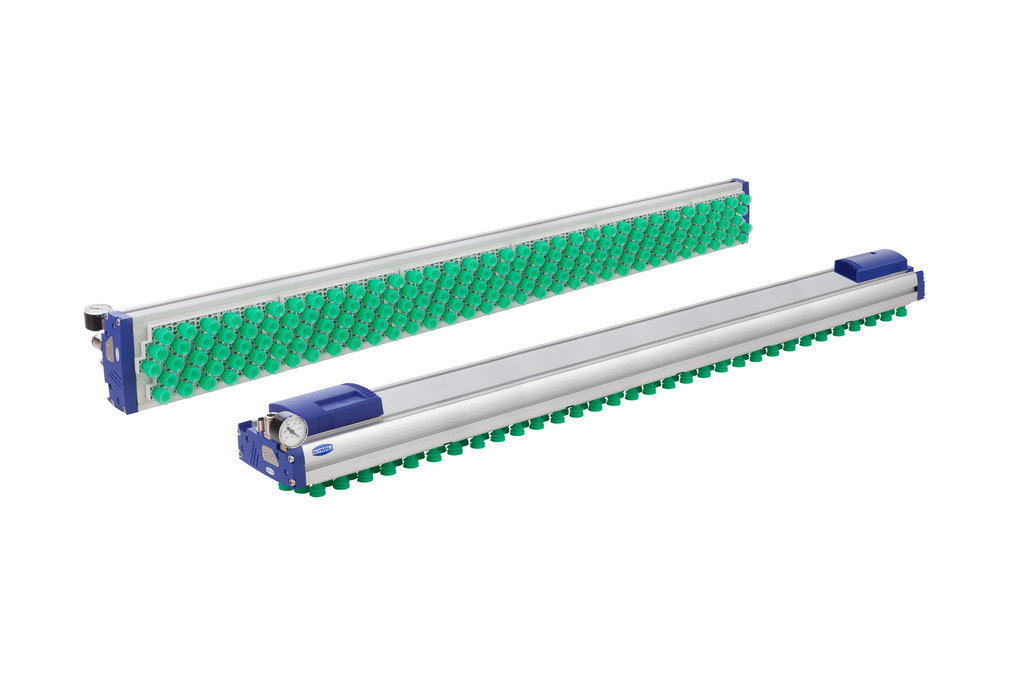

FXP-SVK 1234 5R36 SPB2-20P F
Part no.: 10.01.38.00743
Vacuum area gripping system with integrated pneumatic vacuum generator and ball check valves
| Length L | 1234 (mm) |
| Width B | 130 (mm) |
| Arrangement | 5R36 |
| Additional function area gripper | Filter |
| Number of suction cells | 165 |
| Design vacuum generator | Multi-stage ejector SEMP |
| Air consumption [l/min] | 875 (l/min) |
| Weight | 6.3 (kg) |
| Product family | FXP |

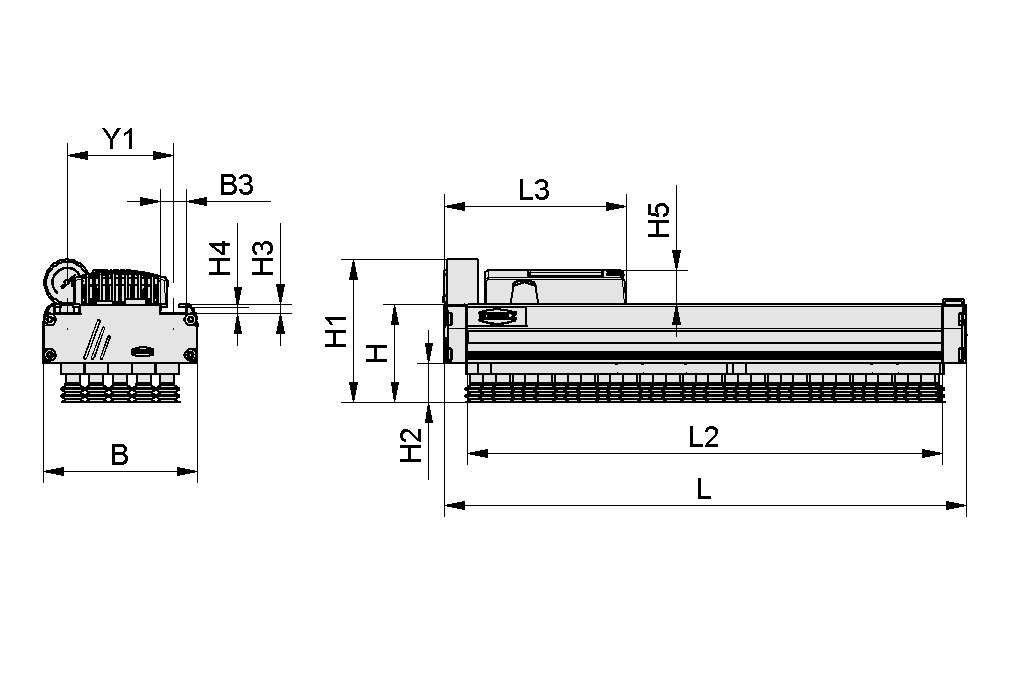

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 130 mm |
| B3 | 21.6 mm |
| H | 83 mm |
| H1 | 122 mm |
| H2 | 33 mm |
| H3 | 7.7 mm |
| H4 | 5.5 mm |
| H5 | 28 mm |
| L | 1,234 mm |
| L2 | 1,194 mm |
| L3 | 154 mm |
| Y1 | 90 mm |
| Valve type | SVK |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Arrangement | 5R36 |
| Number of suction cells | 165 |
| Suction force at -250 mbar | 540 N |
| Suction rate (max.) | 2,940 l/min |
| Air consumption [l/min] | 875 l/min |
| Sealing element | Suction Cups |
| Additional function area gripper | Filter |
| with | Filter |
| Weight | 6.3 kg |
| Product family | FXP |
