FXP-S-SVK 442 5R36 SPB2-20-P
Part no.: 10.01.38.00958
Vacuum area gripping system with integrated pneumatic vacuum ball check valves
| Length L | 442 (mm) |
| Width B | 130 (mm) |
| Arrangement | 5R36 |
| Number of suction cells | 55 |
| Additional function area gripper | 1x control valve vacuum / blow-off |
| Design vacuum generator | Multi-stage ejector SEMP |
| Construction vacuum switch | PNP switching |
| Voltage DC | 24 V - DC |
| Air consumption [l/min] | 250 (l/min) |
| Weight | 3.6 (kg) |
| Product family | FXP |

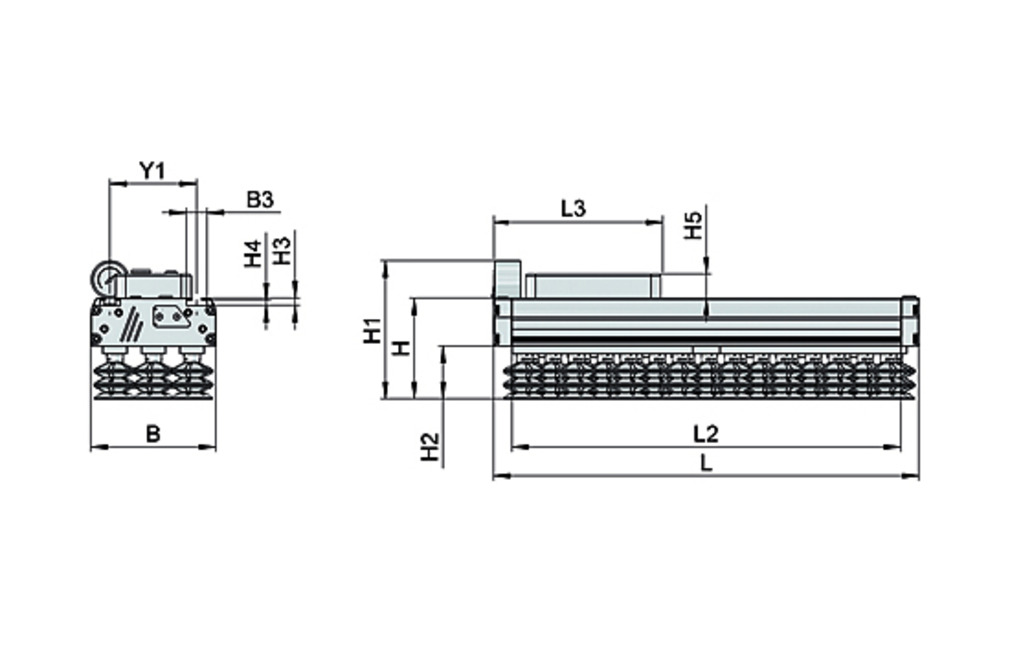

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 130 mm |
| B3 | 21.6 mm |
| H | 83 mm |
| H1 | 122 mm |
| H2 | 33 mm |
| H3 | 7.7 mm |
| H4 | 5.5 mm |
| H5 | 28 mm |
| L | 442 mm |
| L2 | 402 mm |
| L3 | 154 mm |
| Y1 | 90 mm |
| Valve type | SVK |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Arrangement | 5R36 |
| Number of suction cells | 55 |
| Suction force at -250 mbar | 180 N |
| Suction rate (max.) | 1,050 l/min |
| Air consumption [l/min] | 250 l/min |
| Voltage | 24V - DC |
| Sealing element | Suction Cups |
| Additional function area gripper | 1x control valve vacuum / blow-off |
| Weight | 3.6 kg |
| Product family | FXP |
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Spare parts
ERS FXP-S-SEMP-50 DECKEL10.01.38.02190Spare part set
| Measuring range [bar] | bar |
| Size | SEMP-50 |
| contains | Cover |
| Utilization design | Vacuum area gripping system FXP-S |
MASK-FOL SVK 402 5R36 FXP-FMP10.01.38.00525Front foil
| Length L | 402 (mm) |
| Width B | 109.8 (mm) |
| Height H | 0.4 (mm) |
| Arrangement suction cells | 5R36 |
| Measuring range [bar] | bar |
| Utilization design | Vacuum area gripping system FXP-FMP |
SD 120x79x29 FXP10.01.38.01607Silencer for vacuum generators
| Length L | 120 (mm) |
| Width B | 79 (mm) |
| Height H | 29 (mm) |
| Utilization design | Vacuum area gripping system FXP |
SPB2 20 SI-40 P10.01.06.03125Bellows suction cup (round)
with 2.5 corr. for dynamic handling
of cardboard and rigid packaging
| Size | 20 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 40 (Shore A) |
| Number of folds | 2.5 |
| Shape | Push In |
Accessories
FLAN-PL 120x85x10 ST FLGR10.01.10.05701Flange plate
| Length L | 120 (mm) |
| Width B | 85 (mm) |
| Height H | 10 (mm) |
| Material | Steel |
| Utilization design | Vacuum area gripping system |
FLK G1/2-IG G1/2-AG10.01.03.00175Flexible suction cup mounting for
adaptation to sloping surfaces
| Thread G1 | G1/2"-F |
| Thread G2 | G1/2"-M |
| Operating temperature | 0 ... 70 °C |
FST-FLEX 25 HD1 G1/2-AG G3/8-IG10.01.10.05697Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 25 (mm) |
| Shape mounting elements | Heavy duty 1 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-FLEX 25 HD2 G1/2-AG G3/8-IG10.01.10.05695Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 25 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-FLEX 50 HD1 G1/2-AG G3/8-IG10.01.10.05687Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 50 (mm) |
| Shape mounting elements | Heavy duty 1 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-FLEX 50 HD2 G1/2-AG G3/8-IG10.01.10.05168Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 50 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-FLEX 75 HD1 G1/2-AG G3/8-IG10.01.10.05698Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 75 (mm) |
| Shape mounting elements | Heavy duty 1 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-FLEX 75 HD2 G1/2-AG G3/8-IG10.01.10.05696Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 75 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-STARR 25 HD1 G1/2-AG G3/8-IG10.01.10.05810Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 25 (mm) |
| Shape mounting elements | Heavy duty 1 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-STARR 25 HD2 G1/2-AG G3/8-IG10.01.10.05806Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 25 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-STARR 50 HD1 G1/2-AG G3/8-IG10.01.10.05809Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 50 (mm) |
| Shape mounting elements | Heavy duty 1 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-STARR 50 HD2 G1/2-AG G3/8-IG10.01.10.05805Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 50 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-STARR 75 HD1 G1/2-AG G3/8-IG10.01.10.05808Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 75 (mm) |
| Shape mounting elements | Heavy duty 1 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-STARR 75 HD2 G1/2-AG G3/8-IG10.01.10.05803Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 75 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
MOD-FLAN 120x120 FXP-FMP10.01.21.00244Flange module
| Length L | 120 (mm) |
| Width B | 120 (mm) |
| Height H | 60 (mm) |
| Measuring range [bar] | bar |
| Thread G1 | G1/2"-F |
| Weight | 1.1 (kg) |
| Utilization design | Vacuum area gripping system FXP-FMP |
MOD-FLAN 176.6x118 FXP10.01.38.01722Flange module
| Length L | 176.6 (mm) |
| Width B | 118 (mm) |
| Height H | 40 (mm) |
| Utilization design | Vacuum area gripping system FXP |
VS-MONT 84x21x34.5 VSi-V FXP10.01.38.02691Vacuum switch (inst)
| Length L | 84 (mm) |
| Width B | 21 (mm) |
| Height H | 34.5 (mm) |
| Utilization design | Vacuum area gripping system FXP |
SET FXC-FMC10.01.21.01291Mounting set
| Length L | 119 (mm) |
| Width B | 119 (mm) |
| Height H | 9.6 (mm) |
| Measuring range [bar] | bar |
| Thread G1 | G1/2"-F |
| Utilization design | Vacuum area gripping system FXC-FMC |
SET FXP-FMP10.01.21.02407Mounting set
| Length L | 232 (mm) |
| Width B | 119 (mm) |
| Height H | 119 (mm) |
| Measuring range [bar] | bar |
| Weight | 1.3 (kg) |
| Utilization design | Vacuum area gripping system FXP-FMP |
SET FXP-FMP 4NUTSTEIN G2010.01.21.00243Mounting set
| contains | 4 sliding blocks |
| Measuring range [bar] | bar |
| Utilization design | Vacuum area gripping system FXP-FMP |
VAM 40 V U BAR10.07.02.00046Vacuum gauge (manometer)
for analogue measurement and
monitoring of the vacuum
| Width B | 23 (mm) |
| Height H | 46 (mm) |
| Outside diameter D | 40 (mm) |
| Measuring range [bar] | -1,00 ... 0,00 bar |
| Shape manometers | Connection at bottom |
| Thread G1 | G1/8"-M |
| Weight | 0.06 (kg) |
VSL 12-9 PU MI-TR10.07.09.00037Hose for vacuum and
compressed-air systems
| Outside diameter D | 12 (mm) |
| Internal diameter d | 9 (mm) |
| Length max. | 50 (m) |
| Material hose | PU |
| Bending radius min. | 70 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -20 ... 90 °C |
| Color | Milky-transparent |
NUT-STEI 20x20 M8-IG 1025.09.06.00012Nut for profile slot
| Width B | 20 (mm) |
| Height H | 4.9 (mm) |
| Material | Steel |
| Length L | 20 (mm) |
| Thread G1 | M8-F |
| Shape mounting elements | With step |
| Surface | galvanised |
| Weight | 15.9 (g) |
NUT-STEI 20x20 M6-IG 1025.09.06.00036Nut for profile slot
| Width B | 20 (mm) |
| Height H | 5 (mm) |
| Material | Steel |
| Length L | 20 (mm) |
| Thread G1 | M6-F |
| Shape mounting elements | With step |
| Surface | galvanised |
ABDK-PROF-10x7x1450-KU-SW-FXP-FMP26.07.03.00002Cover Profile
| Length L | 1450 (mm) |
| Width B | 10 (mm) |
| Height H | 7 (mm) |
| Material | Plastics |
| Color | black |
| Measuring range [bar] | bar |
| Utilization design | Vacuum area gripping system FXP-FMP |
ASK B-M12-5 5000 K-5P21.04.05.00080Connection cable
| Electrical connection | Fem connect M12, 5 pol |
| Cable length | 5000 (mm) |
| Connection 2 | Cable, 5-pole |
| Material hose | PUR cable |
FLAN-PL 120x120x10 FXC-FMC10.01.21.00313Flange plate
| Length L | 120 (mm) |
| Width B | 120 (mm) |
| Height H | 10 (mm) |
| Measuring range [bar] | bar |
| Utilization design | Vacuum area gripping system FXC-FMC |
FLK G1/2-IG G1/2-AG V10.01.03.00207Flexible suction cup mounting for
adaptation to sloping surfaces
| Thread G1 | G1/2"-F |
| Thread G2 | G1/2"-M |
| Operating temperature | 0 ... 70 °C |
| Shape mounting elements | reinforced |
VS-MONT 76.5x19 VSi FXP-FMP10.01.38.02485Vacuum switch (inst)
| Length L | 76.5 (mm) |
| Width B | 19 (mm) |
| Special function | Can be mounted upright |
| Additional function area gripper | Vacuum and pressure switch VSi |
| Measuring range [bar] | bar |
| with | Vacuum and pressure switch |
| Utilization design | Vacuum area gripping system FXP-FMP |
