Part no.: 10.02.02.00630

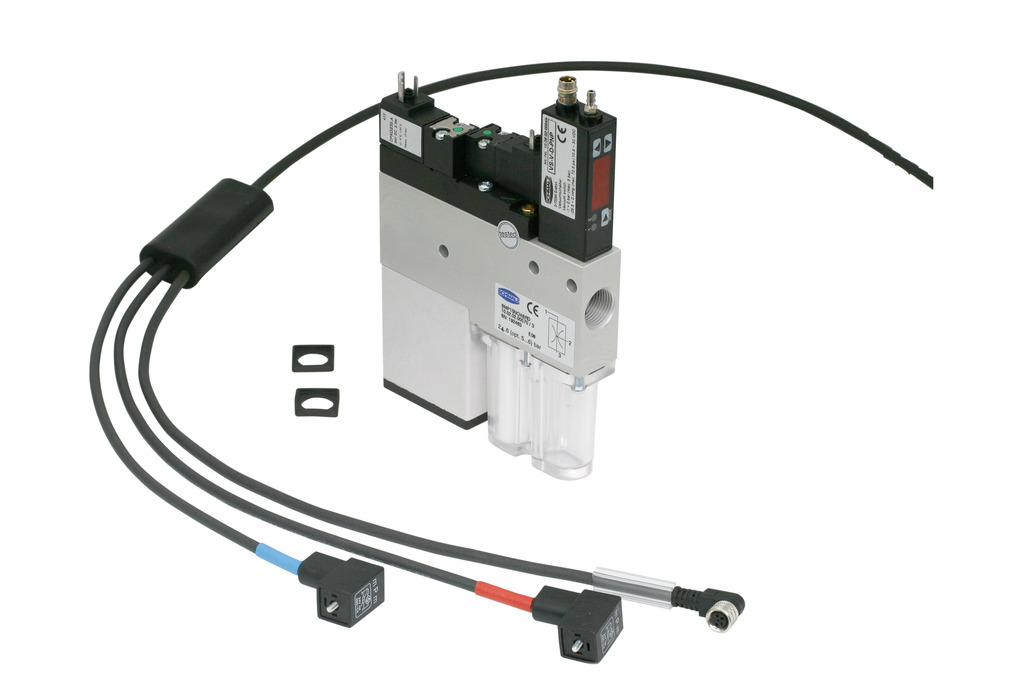

Compact ejector with integrated functions
| Nozzle diameter | 2 (mm) |
| Suction rate (max.) | 116 (l/min) |
| Air consumption suction | 190 (l/min) |
| Pressure range (operating pressure) [bar] | 5.0 ... 6.0 bar |
| Control valve | Normally open |
| Shape compact ejectors | With blow-off system |
| Functionality of the ejector | Digital air-saving function |
This item has phased out.
Unfortunately, the desired product can no longer be ordered. However, we do offer an alternative item. If you have any questions or require further information, please do not hesitate to contact your local contact person.

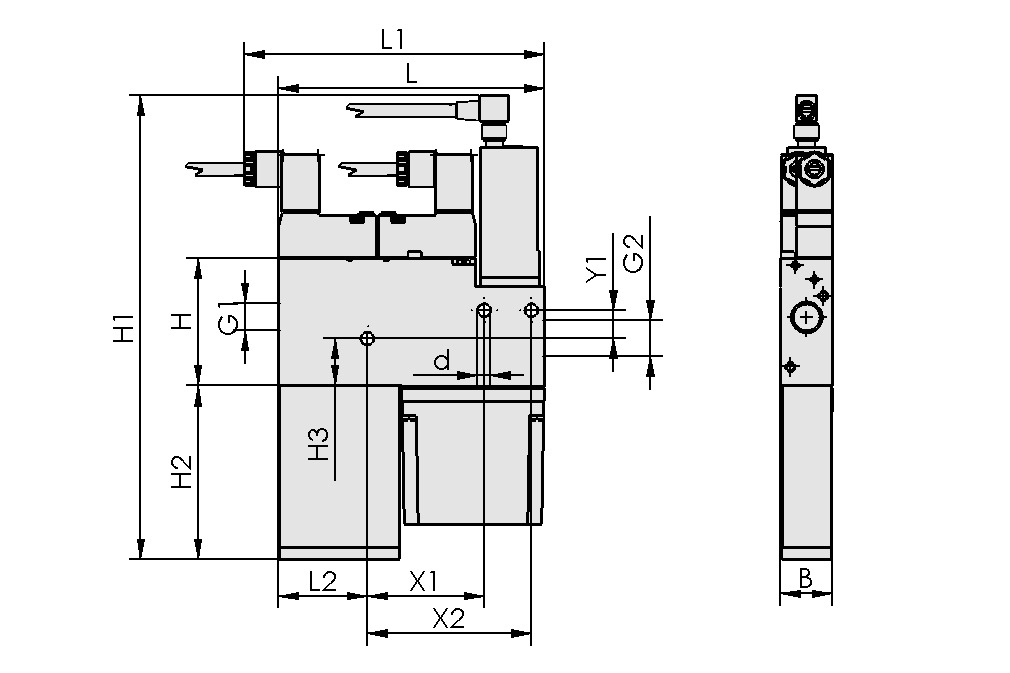

| Attribute | Value |
|---|---|
| B | 22 mm |
| d | 5.5 mm |
| G1 | G1/4"-F |
| G2 | G3/8"-F |
| H | 54 mm |
| H1 | 181.5 mm |
| H2 | 58.5 mm |
| H3 | 20.1 mm |
| L | 112.5 mm |
| L2 | 37.5 mm |
| X1 | 49.5 mm |
| X2 | 69.5 mm |
| Y1 | 12 mm |
| Attribute | Value |
|---|---|
| Nozzle diameter | 2 mm |
| Degree of evacuation | 85 % |
| Suction rate (max.) | 116 l/min |
| Control valve | Normally open |
| Suction rate (max.) | 4.1 cfm |
| Product family | SCP |
| Outside diameter D | 13.6 (mm) |
| Length L | 48.5 (mm) |
| Filter material | Polyethylene |
| Utilization design | Compact ejectors |
| Length L | 50.5 (mm) |
| Width B | 21 (mm) |
| Height H | 53.5 (mm) |
| Utilization design | Compact ejectors SMP |
