SCPSb 2-14 S02 NC VD
Part no.: 10.02.02.04609

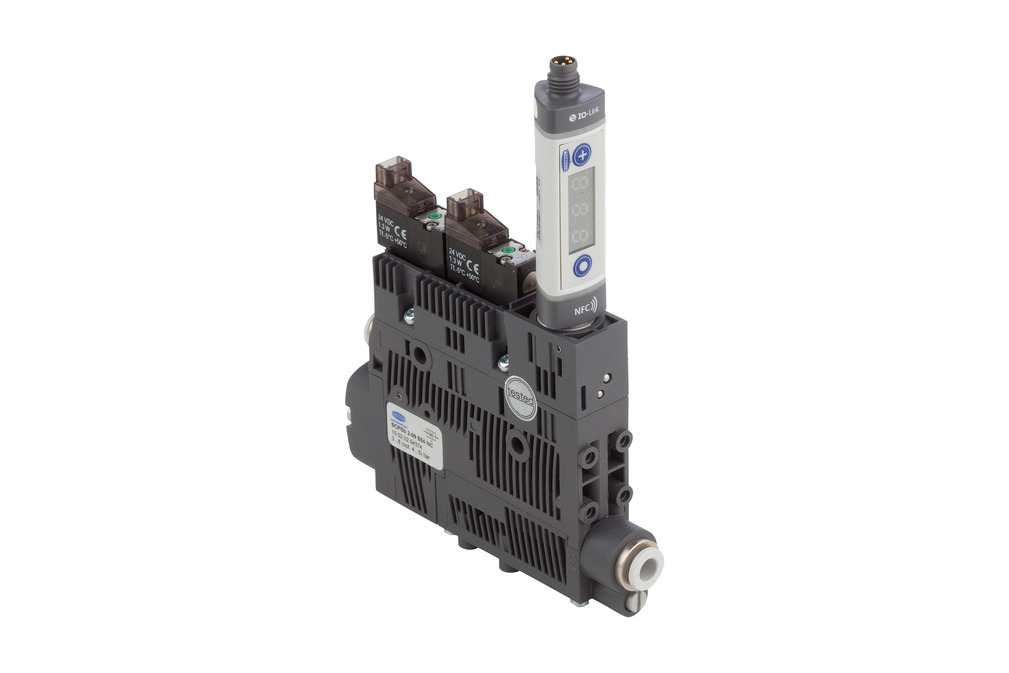

Compact ejector with integrated valve functionality in slim design
| Nozzle size | 2-14 |
| Connection | Hose D6(1)-D8(2) |
| Suction rate (max.) | 71.5 (l/min) |
| Air consumption suction | 82 (l/min) |
| Max. vacuum | -850 (mbar) |
| Control valve | Normally closed |
| Functionality of the ejector | digital vacuum switch |

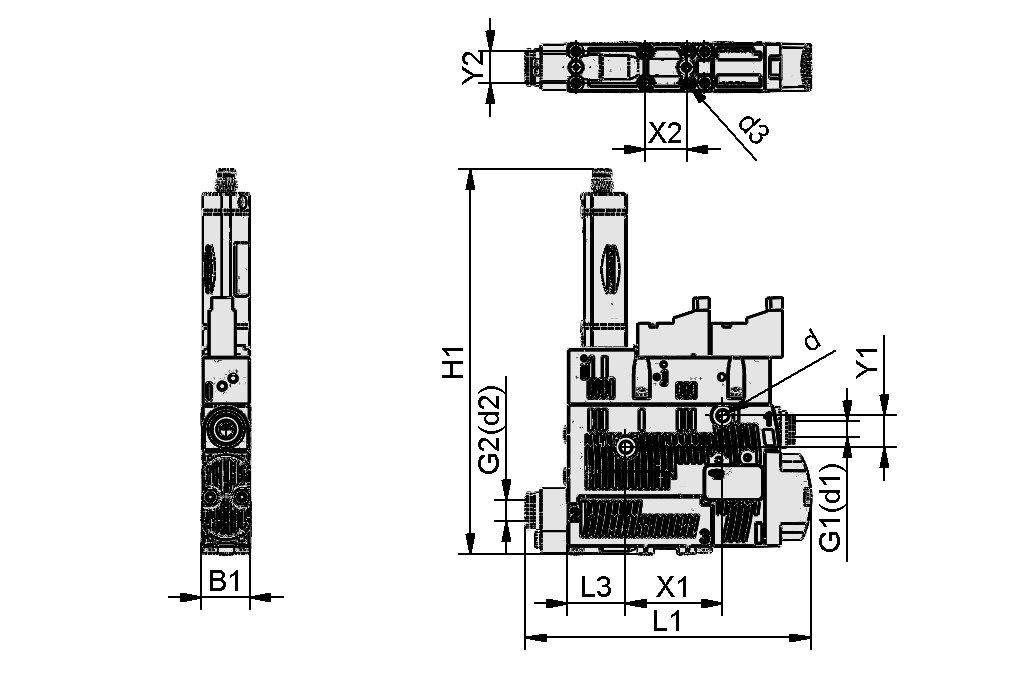

Design Data
Design Data
| Attribute | Value |
|---|---|
| B1 | 18.6 mm |
| d | 4.4 mm |
| d1 | 6 mm |
| d2 | 8 mm |
| d3 | 2.6 mm |
| H1 | 146.5 mm |
| L1 | 109.5 mm |
| L3 | 22 mm |
| X1 | 36.9 mm |
| X2 | 16 mm |
| Y1 | 12 mm |
| Y2 | 12 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Nozzle size | 2-14 |
| Degree of evacuation | 85 % |
| Suction rate (max.) | 71.5 l/min |
| Suction rate (max.) | 4.4 m³/h |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
| Optimal operating pressure | 4.5 bar |
| Protection type IP | IP 40 (with plug) |
| Weight | 0.17 kg |
| Control valve | Normally closed |
| Functionality of the ejector | digital vacuum switch |
| Product family | SCPSb |
Performance Data
Performance Data
Documentation
Documentation
Accessories
ABL-SET SCPS zweistufig10.02.02.04667Exhaust air set
| Utilization design | Compact ejectors SCPS / SCPSi |
| Size | zweistufig |
| Length L | 14 (mm) |
| Width B | 18 (mm) |
| Weight | 16.3 (g) |
ASK B-MIC10 3000 K-2P21.04.06.00086Connection cable
| Material hose | PUR cable |
| Electrical connection | Connect. 10mm |
| Connection 2 | Cable, 2-pole |
ASK B-M8-4 5000 K-4P10.06.02.00031Connection cable
| Electrical connection | Fem connect M8, 4 pol |
| Cable length | 5000 (mm) |
| Connection 2 | Cable, 4-pole |
| Material hose | PUR cable |
HUT-SN-KL 75x18x9 SCPS10.02.02.04149Top-hat rail clamp comp.
| Length L | 75 (mm) |
| Width B | 18 (mm) |
| Height H | 9 (mm) |
| Utilization design | Compact ejectors SCPS / SCPSi |
| Profil type | EN 50022 |
SET SCPS10.02.02.04343Mounting set
| Length L | 113 (mm) |
| Width B | 70 (mm) |
| Height H | 73 (mm) |
| Utilization design | Compact ejectors SCPS / SCPSi |
VFT G1/8-IG 8010.07.01.00116Vacuum cup filter with transparent
housing and replaceable filter
| Connection | G1/8"-F |
| Shape | short filter insert |
| Nominal flow rate | 45 (l/min) |
| Nominal flow rate | 2.7 (m³/h) |
| Filter pore size | 80 (µm) |
VFI CN8/6 5010.07.01.00245Vacuum filter with replaceable
filter cartridge
| Connection | Hose 8/6 with Cap nut |
| Filter pore size | 50 (µm) |
VSL 8-6 PU MI-TR10.07.09.00003Hose for vacuum and
compressed-air systems
| Outside diameter D | 8 (mm) |
| Internal diameter d | 6 (mm) |
| Length max. | 500 (m) |
| Material hose | PU |
| Bending radius min. | 45 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -35 ... 60 °C |
| Color | Milky-transparent |
