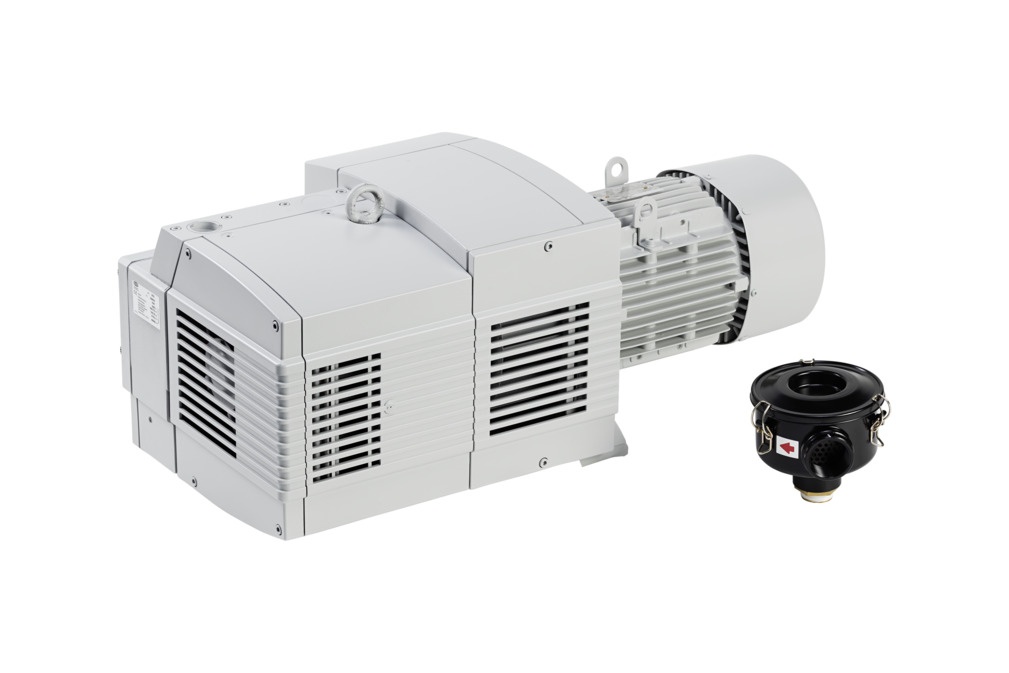

EVE-TR 80 AC3 IE3-TYP4 F
Part no.: 10.03.01.00557
Oil-free pump with constant suction rate, robust, requires little maintenance
| Current type | Three phase A.C. |
| Sound pressure level at 50 Hz | 72 (dB(A)) |
| Voltage at 50 Hz | D290 V / Y500 V ±10 % |
| Voltage 60 Hz | S079 |
| Voltage at 60 Hz | D330 V / Y575 V ±10 % |
| Suction rate (50 Hz) | 67 (m³/h) |
| Suction rate (60 Hz) | 78.5 (m³/h) |
| Vacuum (50 Hz) | -900 (mbar) |
| Rated power at 50 Hz | 2.2 (kW) |
| Rated power at 60 Hz | 2.6 (kW) |
| Version | IE3:CAN |
| with | Filter |
| Approval | UL |
| Weight | 87 (kg) |

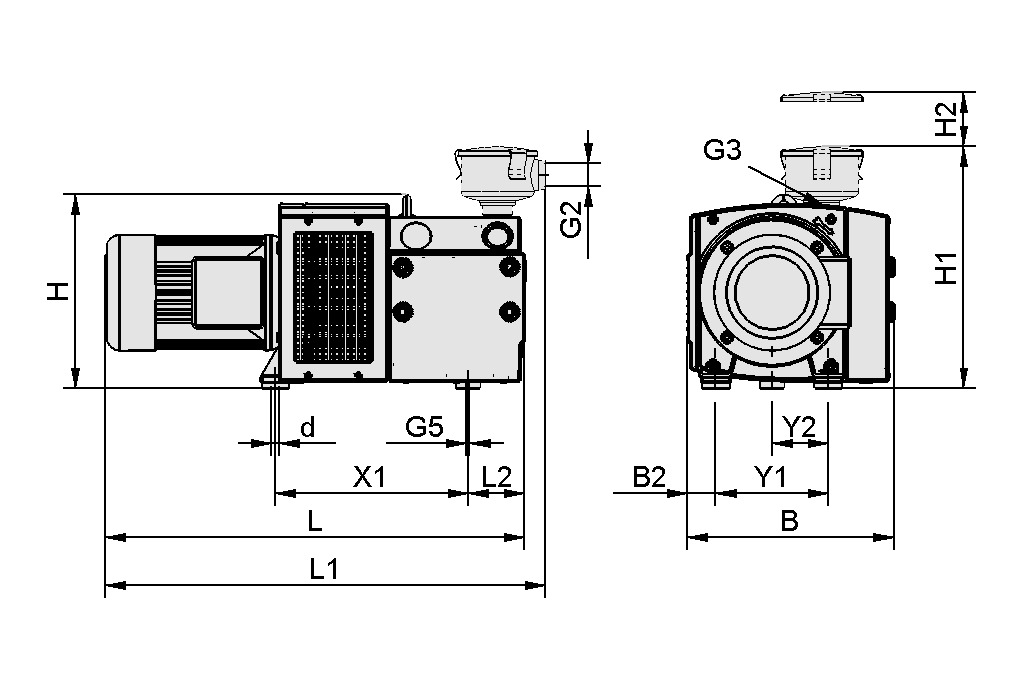

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 353 mm |
| B2 | 48 mm |
| d | 12 mm |
| G2 | G1-1/4"-F |
| G3 | G1"-F |
| G5 | M8-F |
| H | 328 mm |
| H1 | 413.2 mm |
| H2 | 75 mm |
| L | 747 mm |
| L1 | 732 mm |
| L2 | 96 mm |
| X1 | 326 mm |
| Y1 | 190 mm |
| Y2 | 95 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction rate (50 Hz) | 67 m³/h |
| Suction rate (60 Hz) | 78.5 m³/h |
| Voltage at 50 Hz | D290 V / Y500 V ±10 % |
| Voltage at 60 Hz | D330 V / Y575 V ±10 % |
| Rated power at 50 Hz | 2.2 kW |
| Rated power at 60 Hz | 2.6 kW |
| Supply voltage | AC3 |
| Current type | Three phase A.C. |
| Version | IE3:CAN |
| Sound pressure level at 50 Hz | 72 dB(A) |
| Weight | 87 kg |
| Protection type IP | IP 55 |
| Product family | EVE-TR |
Performance Data
Performance Data
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Spare parts
FILT-EINS 3 98x70 PAP STF-1-1/4-IGN10.07.01.00018Filter insert (round)
| Filter pore size | 3 (µm) |
| Outside diameter D | 98 (mm) |
| Length L | 70 (mm) |
| Filter material | Paper |
| Utilization design | Dust filter STF |
| Size | 1-1/4-IGN |
VST EVE-TR60/TR8022.09.01.00031Set of parts subject to wear pump
| Utilization design | Pump EVE |
| Size | TR60/TR80 |
| contains | Brush slide |
| and | Filter |
Accessories
VBV -950...0 G1-1/4-AG EVE 60-14010.03.01.00153Vacuum valve for limiting
the maximum vacuum pressure
| Outside diameter D | 58 (mm) |
| Max. vacuum | -950 (mbar) |
| Thread G1 | G1-1/4"-M |
| Length L | 72 (mm) |
| Utilization design | Pump EVE |
| Size | 60-140 |
SBB-EVE-ST-VZ10.04.04.00368Silencer box for reduction of the
noise level
| Material | Steel |
| Surface | galvanised |
| Length L | 798 (mm) |
| Width B | 548 (mm) |
| Height H | 404 (mm) |
