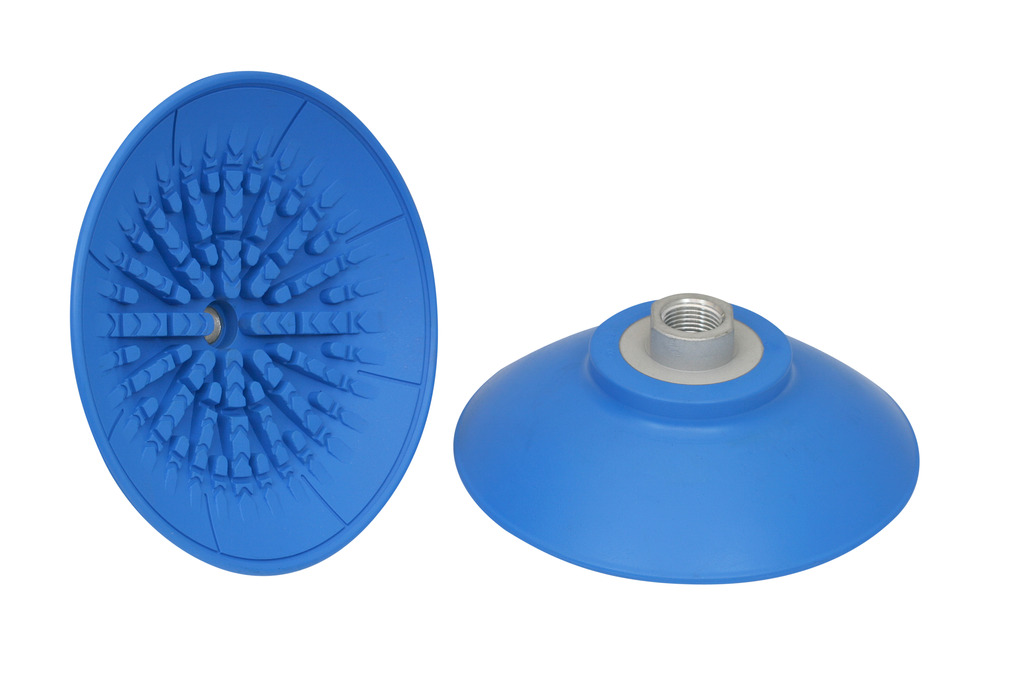

SAF 125 NBR-45 G3/8-IG

Part no.: 10.01.01.11406

Flat suction cup (round) for very dynamic handling of smooth and oily workpieces

Size	125
Suction cup material	Nitrile rubber NBR
Material hardness [Shore A]	45 (Shore A)
Nipple material	Aluminum
Connection	G3/8-IG

Product information

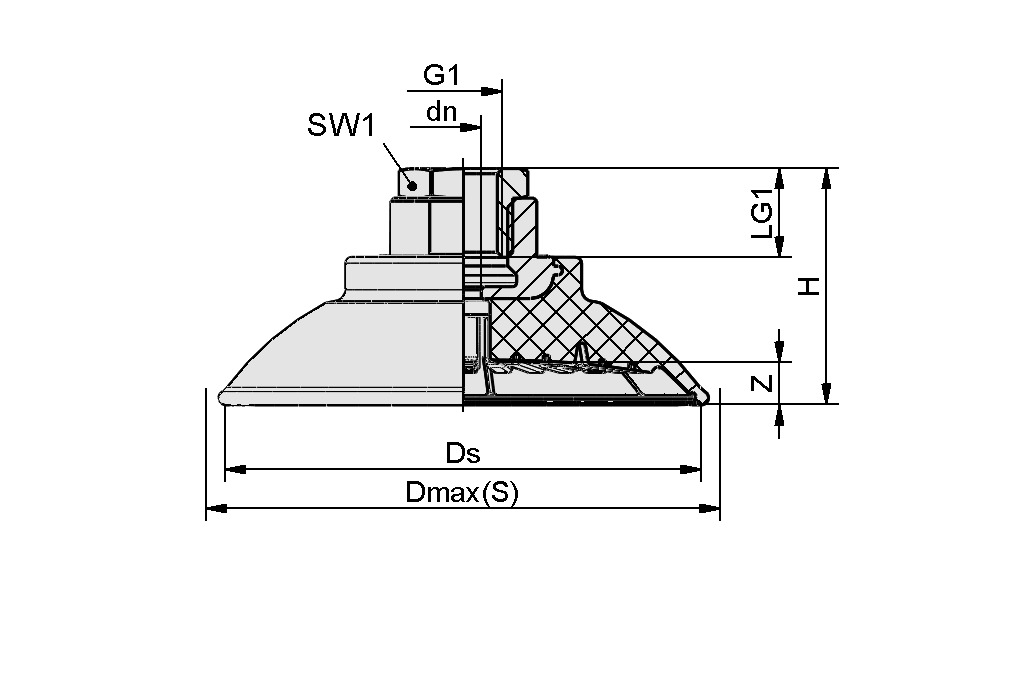

Design Data

Attribute	Value
dn	9 mm
Dmax(S)	135 mm
Ds	125 mm
G1	G3/8"-F
H	43 mm
LG1	15 mm
SW1	22 mm
Z (Stroke)	12.5 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Technical Data

Attribute	Value
Suction force (-600mbar)	660 N
Lateral force	475 N
Lateral force oily surface	400 N
Volume	119 cm³
Workpiece radius min. (convex)	165 mm
Hose inner diameter (recom.) d	9 mm
Size	125
Suction cup material	Nitrile rubber NBR
Material hardness [Shore A]	45 Shore A
Weight	146 g
Number of folds	0
Product family	SAF

Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a dry, smooth and even workpiece surface - they do not include a safety factor Lateral force: The specified lateral forces are values measured at a vacuum of -0.6 bar with a dry or oily, smooth, flat workpiece surface. Depending on the workpiece surface and its quality, the actual values may deviate from these values Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
