SPU 160 NBR-55 G1/2-IG AE
Part no.: 10.01.01.01155

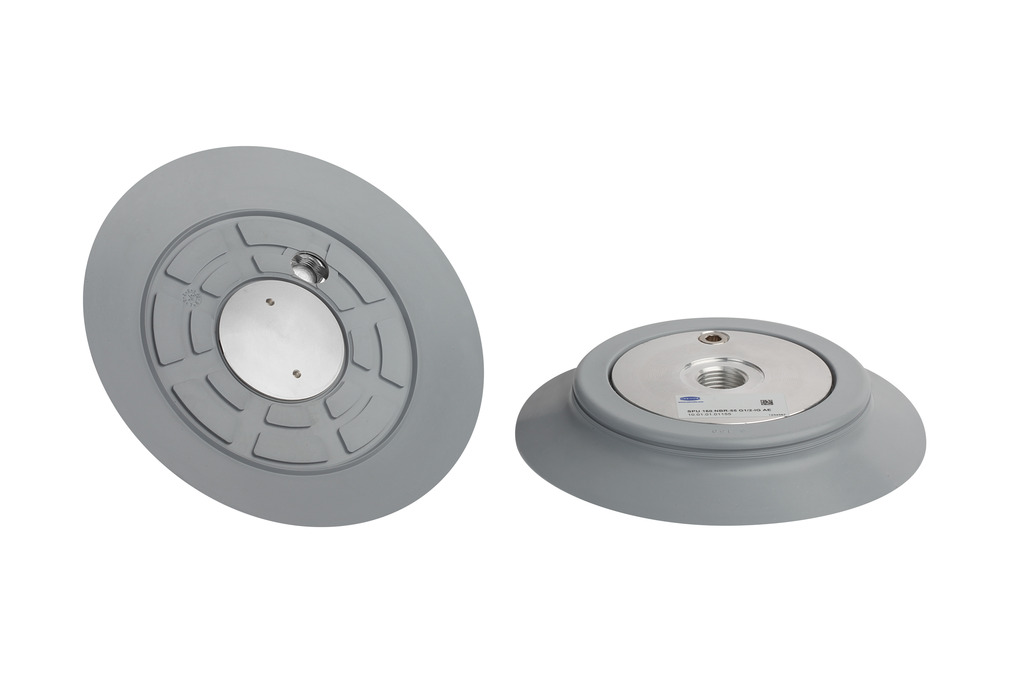

Suction plate (round), universal, for smooth and slightly rough surfaces
| Size | 160 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 (Shore A) |
| Connection | G1/2"-F |

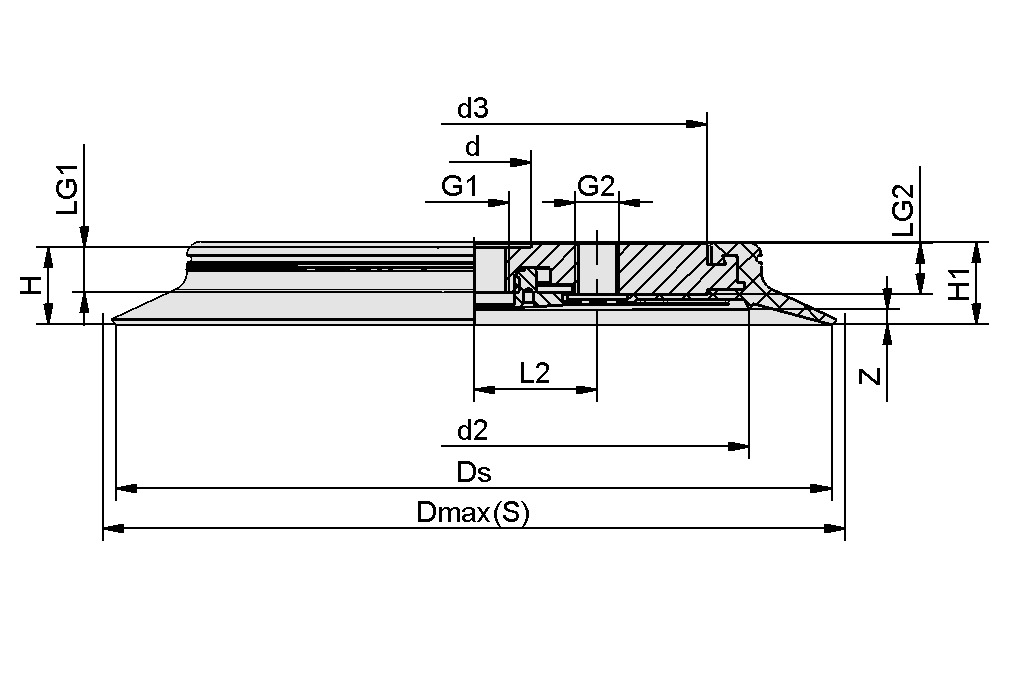

Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 34 mm |
| d2 | 113 mm |
| d3 | 88 mm |
| Dmax(S) | 170 mm |
| Ds | 160 mm |
| G1 | G1/2"-F |
| G2 | G1/4"-F |
| H | 24.5 mm |
| H1 | 26 mm |
| L2 | 36.5 mm |
| LG1 | 13.5 mm |
| LG2 | 15 mm |
| Z (Stroke) | 8 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 1,090 N |
| Suction force d2 | 600 N |
| Volume | 151 cm³ |
| Hose inner diameter (recom.) d | 12 mm |
| Size | 160 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 Shore A |
| Weight | 440 g |
| Number of folds | 0 |
| Product family | SPU |
