FXP-i-SVK 1234 3R54 SPB2-40P V0

Part no.: 10.01.38.06693

Intelligent area gripping system integrated pneum. vacuum generation and ball check valves

Length L1,234 mm
Width B130 mm
Length L11,242 mm
Arrangement3R54
Number of suction cells66
Add. function2x control valve vacuum / blow-off
DesignMulti-stage ejector SEMP
Construction shape vacuum switchNormally open
Voltage DC24 V - DC
FunctionDigital air-saving function
Air consumption875 l/min
Weight8 kg
Product familyFXP
FXP-i-SVK 1234 3R54 SPB2-40P V0

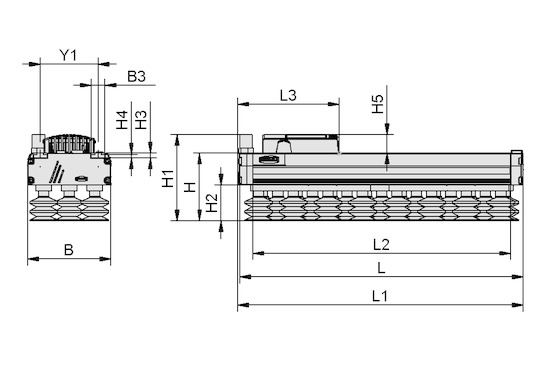

Attribute Value
B 130 mm
B3 21.60 mm
H 106 mm
H1 134 mm
H2 56 mm
H3 7.70 mm
H4 5.50 mm
H5 29 mm
L 1234 mm
L1 1242 mm
L2 1194 mm
L3 158.40 mm
Y1 90 mm
Valve type SVK


Permissible dimensional tolerances for elastomer parts according to DIN ISO 3302-1 M3 Note: Two ejectors and silencer box covers are used for the 1,234 mm and 1,432 mm lengths. Type FXP requires compressed air hose 12/9 mm.
Attribute Value
Arrangement 3R54
Number of suction cells 66
Suction force at -250 mbar 720 N
Suction rate (max.) 2940 l/min
Air consumption 875 l/min
Voltage 24V - DC
Sealing element Suction Cups
Add. function No vacuum display
Add. function 2x control valve vacuum / blow-off
Weight 8 kg
Product family FXP


Sound level: 74 dB(A) Max. degree of evacuation 55 %
The matching documentation for this product is available in this section.

Documents

Language

Operating instructions
English
Operating instructions
Deutsch
Operating instructions
Polski
Operating instructions
Türkçe
Operating instructions
Pусский
Operating instructions
한국어
Operating instructions
Suomalainen
Operating instructions
Nederlands
Operating instructions
Česky
Operating instructions
Hrvatski
Operating instructions
Slovenščina
Operating instructions
Srpski
Operating instructions
Tiếng Việt
Brief operating instructions
English
Brief operating instructions
Deutsch
Brief operating instructions
Italiano
Brief operating instructions
Polski
Brief operating instructions
Türkçe
Brief operating instructions
Pусский
Brief operating instructions
한국어
Brief operating instructions
Suomalainen
Brief operating instructions
Nederlands
Brief operating instructions
Česky
Brief operating instructions
Hrvatski
Brief operating instructions
Slovenščina
Brief operating instructions
Srpski
Brief operating instructions
Tiếng Việt
EU declaration of conformity
English
EU declaration of conformity
Deutsch
EU declaration of conformity
Español
EU declaration of conformity
Français
EU declaration of conformity
Italiano
EU declaration of conformity
Polski
EU declaration of conformity
Türkçe
EU declaration of conformity
Pусский
EU declaration of conformity
中國
EU declaration of conformity
한국어
EU declaration of conformity
Suomalainen
EU declaration of conformity
Nederlands
EU declaration of conformity
Česky
EU declaration of conformity
Hrvatski
EU declaration of conformity
Slovenščina
EU declaration of conformity
Srpski
EU declaration of conformity
Tiếng Việt
The documentation is also fully available in English.

Documents

Language

Operating instructions
English English
Brief operating instructions
English English
EU declaration of conformity
English English
The matching software for this product is available in this section.

Software

Language

Device description file
Global

Accessories

ASK B-M8-6 5000 K-6P
ASK B-M8-6 5000 K-6P
21.04.05.00255
Electrical connectionFem connect M8, 6 pol
Cable length5,000 mm
Material hosePUR cable
PE-PR-39x21.3x16.7-FXP-/FMP-i
PE-PR-39x21.3x16.7-FXP-/FMP-i
10.01.38.06443
Length L39 mm
Width B21.3 mm
Height H16.7 mm
Hole spacing X131 mm
Construction useVacuum area gripping system FXP-i/FMP-i
FLAN-PL 120x85x10 ST FLGR
FLAN-PL 120x85x10 ST FLGR
10.01.10.05701
Length L120 mm
Width B85 mm
Height H10 mm
MaterialSteel
Construction useVacuum area gripping system
FLK G1/2-IG G1/2-AG
FLK G1/2-IG G1/2-AG
schmalz-select
10.01.03.00175
Thread G1G1/2"-F
Thread G2G1/2"-M
Operating temperature0 ... 70 °C
FST-FLEX 25 HD1 G1/2-AG G3/8-IG
FST-FLEX 25 HD1 G1/2-AG G3/8-IG
10.01.10.05697
Spring stroke Z25 mm
Shape mounting elementsHeavy duty 1 spring plunger
Construction useMounting section
Size90x90
FST-FLEX 25 HD2 G1/2-AG G3/8-IG
FST-FLEX 25 HD2 G1/2-AG G3/8-IG
10.01.10.05695
Spring stroke Z25 mm
Shape mounting elementsHeavy duty 2 spring plunger
Construction useMounting section
Size90x90
FST-FLEX 50 HD1 G1/2-AG G3/8-IG
FST-FLEX 50 HD1 G1/2-AG G3/8-IG
10.01.10.05687
Spring stroke Z50 mm
Shape mounting elementsHeavy duty 1 spring plunger
Construction useMounting section
Size90x90
FST-FLEX 50 HD2 G1/2-AG G3/8-IG
FST-FLEX 50 HD2 G1/2-AG G3/8-IG
10.01.10.05168
Spring stroke Z50 mm
Shape mounting elementsHeavy duty 2 spring plunger
Construction useMounting section
Size90x90
FST-FLEX 75 HD1 G1/2-AG G3/8-IG
FST-FLEX 75 HD1 G1/2-AG G3/8-IG
10.01.10.05698
Spring stroke Z75 mm
Shape mounting elementsHeavy duty 1 spring plunger
Construction useMounting section
Size90x90
FST-FLEX 75 HD2 G1/2-AG G3/8-IG
FST-FLEX 75 HD2 G1/2-AG G3/8-IG
10.01.10.05696
Spring stroke Z75 mm
Shape mounting elementsHeavy duty 2 spring plunger
Construction useMounting section
Size90x90
FST-STARR 25 HD1 G1/2-AG G3/8-IG
FST-STARR 25 HD1 G1/2-AG G3/8-IG
10.01.10.05810
Spring stroke Z25 mm
Shape mounting elementsHeavy duty 1 spring plunger
Construction useMounting section
Size90x90
FST-STARR 25 HD2 G1/2-AG G3/8-IG
FST-STARR 25 HD2 G1/2-AG G3/8-IG
10.01.10.05806
Spring stroke Z25 mm
Shape mounting elementsHeavy duty 2 spring plunger
Construction useMounting section
Size90x90
FST-STARR 50 HD1 G1/2-AG G3/8-IG
FST-STARR 50 HD1 G1/2-AG G3/8-IG
10.01.10.05809
Spring stroke Z50 mm
Shape mounting elementsHeavy duty 1 spring plunger
Construction useMounting section
Size90x90
FST-STARR 50 HD2 G1/2-AG G3/8-IG
FST-STARR 50 HD2 G1/2-AG G3/8-IG
10.01.10.05805
Spring stroke Z50 mm
Shape mounting elementsHeavy duty 2 spring plunger
Construction useMounting section
Size90x90
FST-STARR 75 HD1 G1/2-AG G3/8-IG
FST-STARR 75 HD1 G1/2-AG G3/8-IG
10.01.10.05808
Spring stroke Z75 mm
Shape mounting elementsHeavy duty 1 spring plunger
Construction useMounting section
Size90x90
FST-STARR 75 HD2 G1/2-AG G3/8-IG
FST-STARR 75 HD2 G1/2-AG G3/8-IG
10.01.10.05803
Spring stroke Z75 mm
Shape mounting elementsHeavy duty 2 spring plunger
Construction useMounting section
Size90x90
MOD-FLAN 120x120 FXP-FMP
MOD-FLAN 120x120 FXP-FMP
10.01.21.00244
Length L120 mm
Width B120 mm
Height H60 mm
Measuring range bar
Thread G1G1/2"-F
Weight1.1 kg
Construction useVacuum area gripping system FXP-FMP
MOD-FLAN 176.6x118 FXP
MOD-FLAN 176.6x118 FXP
10.01.38.01722
Length L176.6 mm
Width B118 mm
Height H40 mm
Construction useVacuum area gripping system FXP
SET fuer-Sensor(FXP/FMP)
SET fuer-Sensor(FXP/FMP)
10.01.38.01194
SET FXC-FMC
SET FXC-FMC
10.01.21.01291
Length L119 mm
Width B119 mm
Height H9.6 mm
Measuring range bar
Thread G1G1/2"-F
Construction useVacuum area gripping system FXC-FMC
SET FXP-FMP
SET FXP-FMP
10.01.21.02407
Length L232 mm
Width B119 mm
Height H119 mm
Measuring range bar
Weight1.3 kg
Construction useVacuum area gripping system FXP-FMP
SET FXP-FMP 4NUTSTEIN G20
SET FXP-FMP 4NUTSTEIN G20
10.01.21.00243
contains4 sliding blocks
Measuring range bar
Construction useVacuum area gripping system FXP-FMP
VSL 12-9 PU MI-TR
VSL 12-9 PU MI-TR
schmalz-select
10.07.09.00037
External diameter D12 mm
Internal diameter d9 mm
Length max.50 m
Material hosePU
Bending radius min.70 mm
Pressure range (operating pressure)-0.95 ... 10.00 bar
Operating temperature-20 ... 90 °C
NUT-STEI 20x20 M8-IG 10
NUT-STEI 20x20 M8-IG 10
25.09.06.00012
Width B20 mm
Height H4.9 mm
MaterialSteel
Length L20 mm
Thread G1M8-F
Shape mounting elementsWith step
Surfacegalvanised
Weight15.9 g
NUT-STEI 20x20 M6-IG 10
NUT-STEI 20x20 M6-IG 10
25.09.06.00036
Width B20 mm
Height H5 mm
MaterialSteel
Length L20 mm
Thread G1M6-F
Shape mounting elementsWith step
Surfacegalvanised
ABDK-PROF-10x7x1450-KU-SW-FXP-FMP
ABDK-PROF-10x7x1450-KU-SW-FXP-FMP
26.07.03.00002
Length L1,450 mm
Width B10 mm
Height H7 mm
MaterialPlastics
Measuring range bar
Construction useVacuum area gripping system FXP-FMP
FLAN-PL 120x120x10 FXC-FMC
FLAN-PL 120x120x10 FXC-FMC
10.01.21.00313
Length L120 mm
Width B120 mm
Height H10 mm
Measuring range bar
Construction useVacuum area gripping system FXC-FMC
FLK G1/2-IG G1/2-AG V
FLK G1/2-IG G1/2-AG V
schmalz-select
10.01.03.00207
Thread G1G1/2"-F
Thread G2G1/2"-M
Operating temperature0 ... 70 °C
Shape mounting elementsreinforced
ASK B-M8-6 2000 S-M12-5
ASK B-M8-6 2000 S-M12-5
21.04.05.01015
Electrical connectionFem connect M8, 6 pol
Cable length2,000 mm
Material hosePUR cable

Ordering information: FXP-i-SVK 1234 3R54 SPB2-40P V0

  • Integrated control valves at FXP-S (optional)
  • Control of vacuum on/off (24V DC, normally open) and blow off on/off (24V DC, normally closed) on version FXP-S
  • Integrated in the end cover
  • Electrical connection: M12 plug (4-pole)



Available spare parts: sealing foam (DI-PL), suction cup (SPB2)
