FG 25 SI-MD-55 N016

Part no.: 10.01.06.05702

Bellows suction cup (round) for very uneven workpieces

FG 25 SI-MD-55 N016
Size25
Suction cup materialSilicone SI metal detectable
Material hardness [Shore A]55 Shore A
Number of folds2.5
FG 25 SI-MD-55 N016

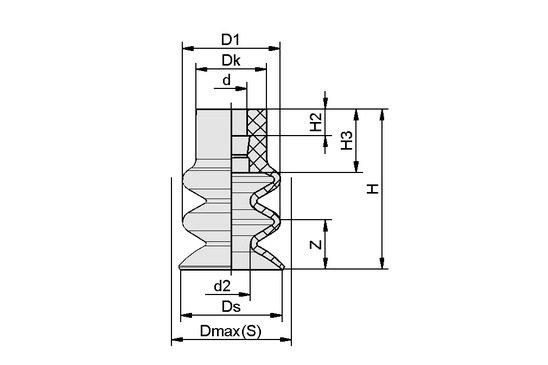

Attribute Value
d 4.50 mm
d2 10 mm
D1 25 mm
Dk 10 mm
Dmax(S) 26 mm
Ds 23 mm
H 34 mm
H2 3.80 mm
H3 9 mm
Z (Stroke) 18 mm


Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3
Attribute Value
Suction force 4.71 N
Pull-off force 19 N
Volume 5.22 cm³
Curve radius (min) (convex) 12 mm
Size 25
Nipple family N 016
Number of folds 2.50
Suction cup material Silicone SI metal detectable
Material hardness [Shore A] 55 Shore A
Weight 4.10 g
Product family FG


Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: FG 25 SI-MD-55 N016
