FGA 8 SI-55 N063

Part no.: 10.01.06.05253

Bellows suction cup (round) with optimal adaptation to uneven surfaces

FGA 8 SI-55 N063
Size8
Suction cup materialSilicone SI
Material hardness [Shore A]55 Shore A
Material characteristicsFDA-compatible
Number of folds1.5

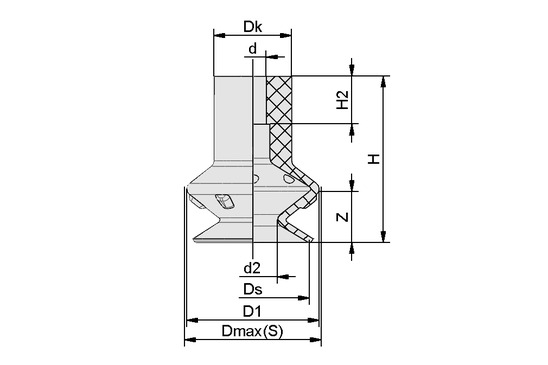

FGA 8 SI-55 N063
Attribute Value
d 1.90 mm
d2 3.50 mm
D1 9.40 mm
Dk 5.50 mm
Dmax(S) 9.70 mm
Ds 8 mm
H 11.80 mm
H2 3.40 mm
Z (Stroke) 3.60 mm


Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3
Attribute Value
Number of folds 1.50
Suction force 0.58 N
Size 8
Suction cup material Silicone SI
Curve radius (min) (convex) 4 mm
Product family FGA


Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: FGA 8 SI-55 N063
