FSGC 40 NBR-55 G1/4-IG

Part no.: 10.01.06.05653

Bellow suction cup (round) for logistics applications for handling a wide range of workpieces

Size40
Suction cup materialNitrile rubber NBR
Material hardness [Shore A]55 Shore A
Nipple materialAluminum
Vacuum connectionG1/4"-F
Number of folds4.5

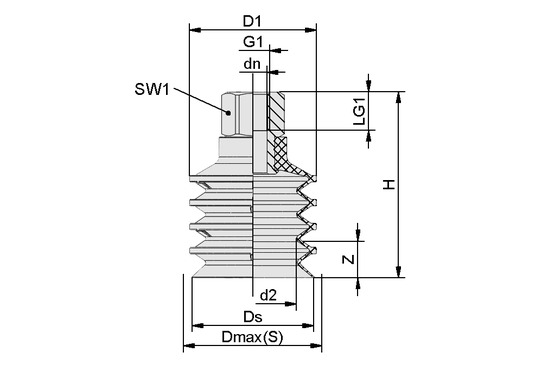

FSGC 40 NBR-55 G1/4-IG
Attribute Value
Z (Stroke) 25 mm
H 64.50 mm
Vacuum connection G1/4"-F
D1 39 mm
d2 27.50 mm
Ds 39 mm
Dmax(S) 41 mm
dn 11 mm
G1 G1/4"-F
G1 G1/4-IG
LG1 12 mm
SW1 22 mm
Attribute Value
Number of folds 4.50
Size 40
Suction cup material Nitrile rubber NBR
Suction force 35 N
Product family FSGC
Material hardness [Shore A] 55 Shore A
Nipple material Aluminum
Pull-off force (real) 37 N
Volume 29.10 cm³
Hose diameter (rec.) d 9 mm


Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: FSGC 40 NBR-55 G1/4-IG

The suction cup FSGC (elastomer part + connection element) is delivered assembled. The product consists of:

  • Suction cup type FGC - elastomer part, available in different diameters
  • Connection element type SC - available with various threads
