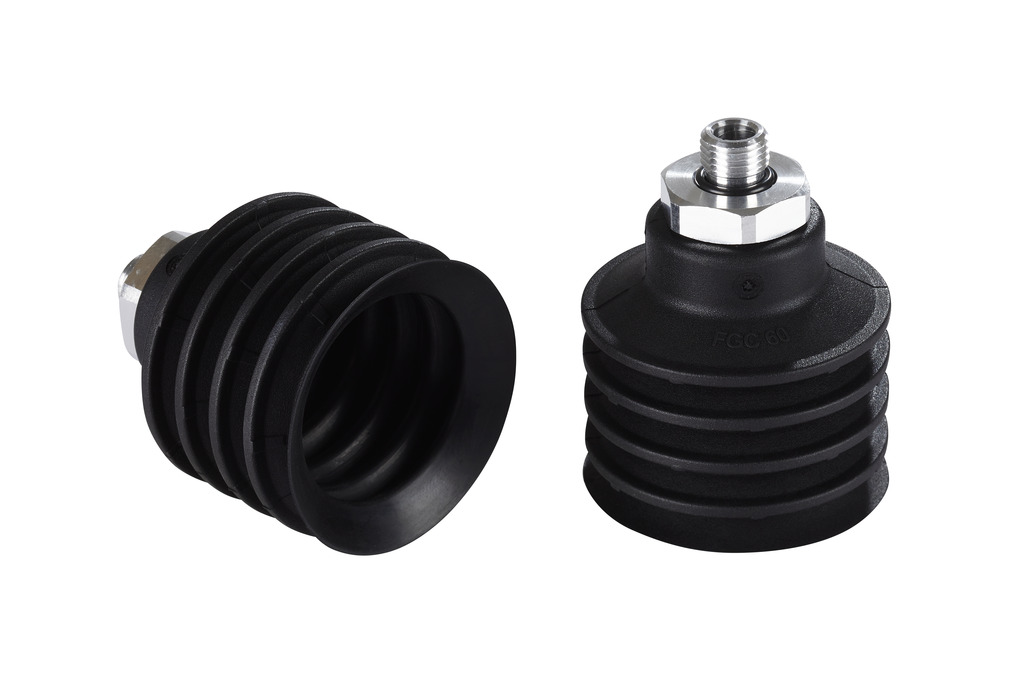

FSGC 60 NBR-55 G3/8-AG > Vacuum Suction Cups

Bellow suction cup (round) for logistics applications for handling a wide range of workpieces

Size	60
Suction cup material	Nitrile rubber NBR
Material hardness [Shore A]	55 Shore A
Nipple material	Aluminum
Vacuum connection	G3/8"-M
Number of folds	4.5

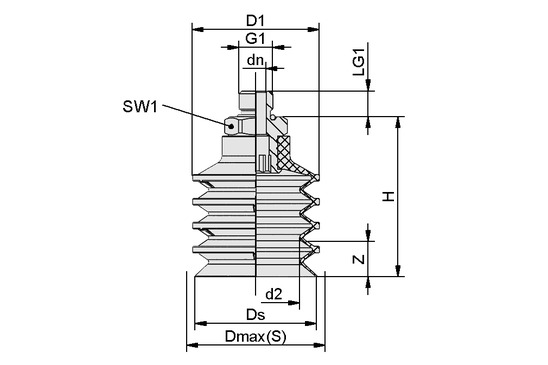

Attribute	Value
Z (Stroke)	32 mm
H	68 mm
Vacuum connection	G3/8"-M
D1	60 mm
d2	41.50 mm
Ds	58 mm
Dmax(S)	61 mm
dn	10.30 mm
G1	G3/8"-M
G1	G3/8-AG
LG1	10 mm
SW1	27 mm

Attribute	Value
Number of folds	4.50
Size	60
Suction cup material	Nitrile rubber NBR
Suction force	80 N
Product family	FSGC
Material hardness [Shore A]	55 Shore A
Nipple material	Aluminum
Pull-off force (real)	84 N
Volume	80.20 cm³
Hose diameter (rec.) d	12 mm

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Connection geometry	090
Vacuum connection	G3/8"-M
Length L1	33.5 mm
Fitting length	7.5 mm
Nominal diameter dn	10.3 mm
