SC 050 G1/4-IG SW410

Part no.: 10.01.06.04348

Connection element for suction cup "SchmalzConnector"

Connection geometry050
Vacuum connectionG1/4"-F
Fitting length17.2 mm
Nominal diameter dn4.1 mm
SC 050 G1/4-IG SW410

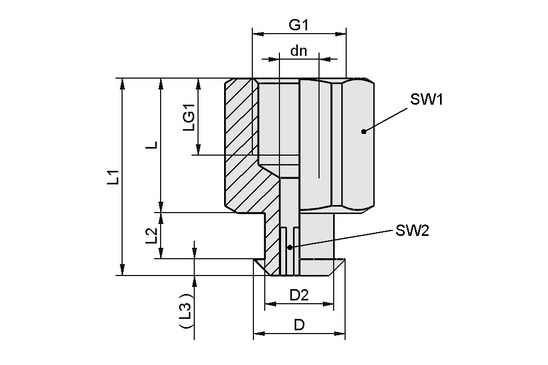

Attribute Value
D 17 mm
D2 12 mm
dn 4.10 mm
G1 G1/4"-F
L 17.20 mm
L1 26.50 mm
L2 6.80 mm
L3 2.50 mm
LG1 12 mm
SW1 17 mm
SW2 4 mm
Attribute Value
Connection G1/4"-F
Material Aluminum

Ordering information: SC 050 G1/4-IG SW410
