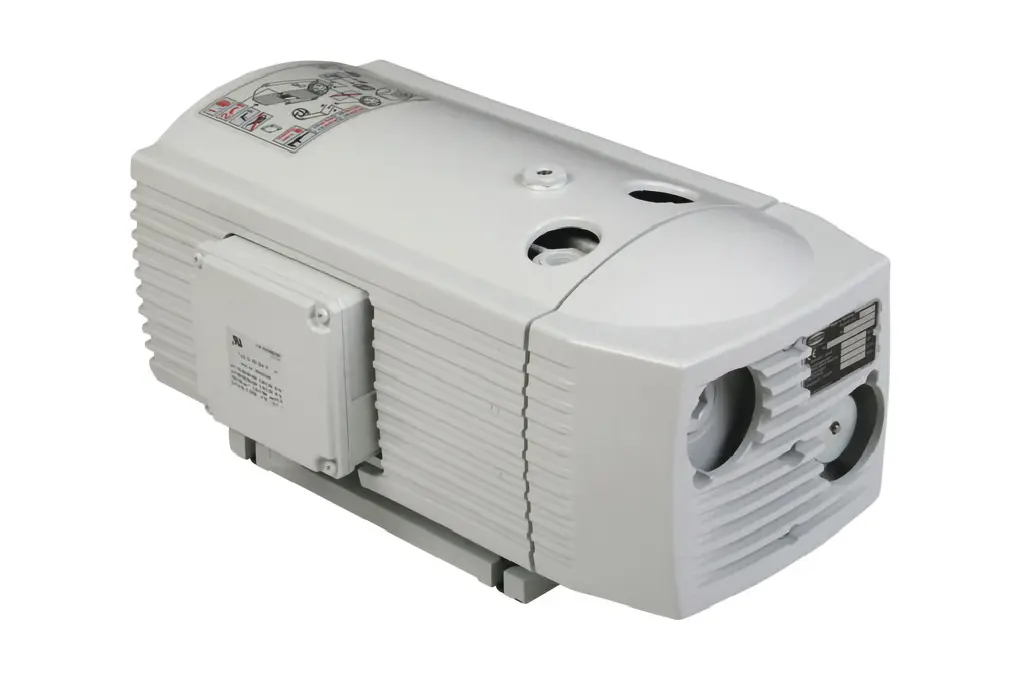

EVE-TR 50 AC3 VBV

Part no.: 11.01.43.00310

Oil-free pump with constant suction rate, robust, requires little maintenance

Sound pressure level at 50 Hz67 (dB(A))
Voltage at 50 Hz190 - 255 V / 330 - 440 V AC3
Voltage at 60 Hz190 - 290 V / 330 - 500 V AC3
Suction rate (50 Hz)50 (m³/h)
Suction rate (60 Hz)60 (m³/h)
Vacuum (50 Hz)-600 (mbar)
Rated power at 50 Hz1.25 (kW)
Rated power at 60 Hz1.5 (kW)
Weight38.5 (kg)
CategoryElectrical vacuum generation
Design Data

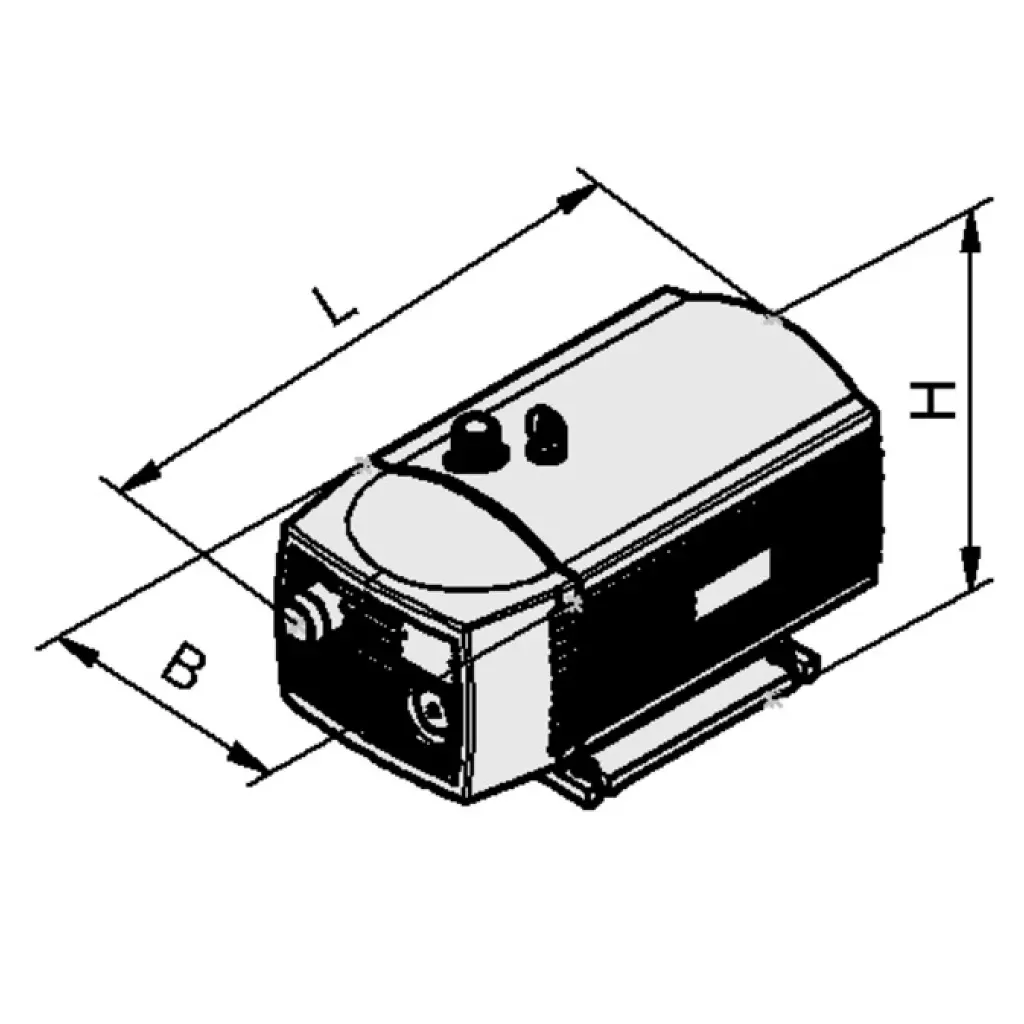

Design image
AttributeValue
L572 mm
L2131 mm
B280 mm
B251 mm
H290 mm
Technical Data
AttributeValue
Weight38.5 kg
CategoryElectrical vacuum generation
