- NEW

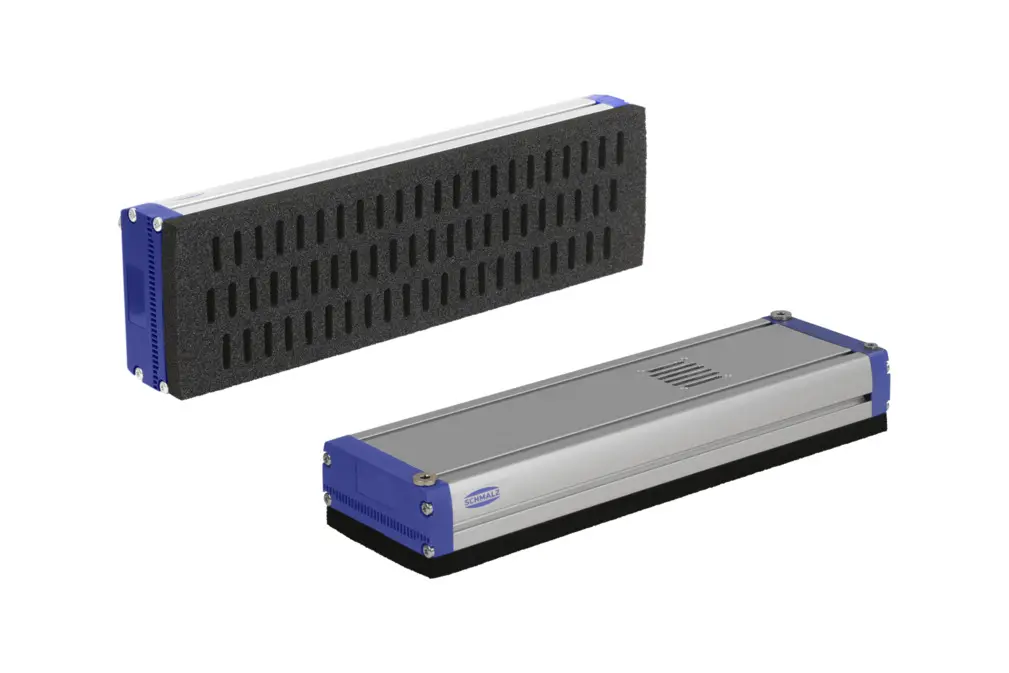

FA-Xc SVK 442 3R18 O20
Part no.: 10.01.38.10029
Vacuum surface gripping system with integrated vacuum generation
Industries: Universal
| Length L | 442 (mm) |
| Width B | 130 (mm) |
| Function | Controlled |
| Arrangement suction cells | 3 rows, 18 mm |
| Material type | Foam open, height 20 mm |
| Valve type | Check valve |

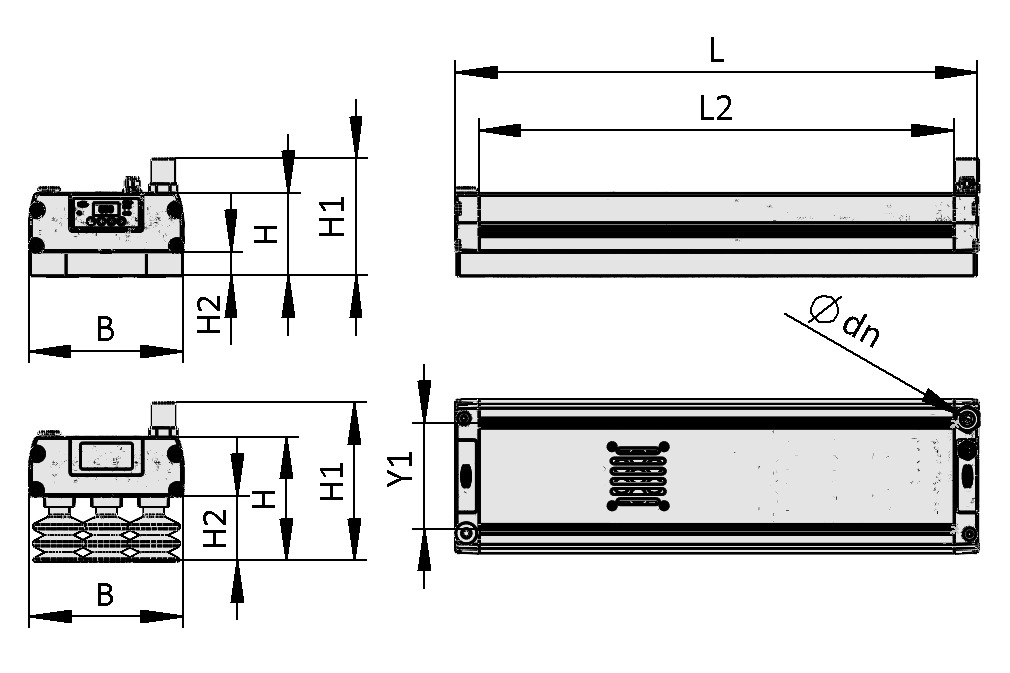

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 130 mm |
| dn | 12 mm |
| H | 70 mm |
| H1 | 99 mm |
| H2 | 20 mm |
| L | 442 mm |
| L2 | 402 mm |
| Y1 | 90 mm |
| Check valve |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Function | Controlled |
| Arrangement suction cells | 3 rows, 18 mm |
| Sealing element | Sealing Foam |
| Material type | Foam open, height 20 mm |
| Number of suction cells | 65 |
| Size | 1x66 |
| Construction vacuum switch | PNP switching |
| Control valve | Normally open |
| Voltage | 24V - DC |
| Electrical connection | Fem connect M12, 5 pol |
| Air consumption [l/min] | 350 l/min |
| Suction rate (max.) | 910 l/min |
| Weight | 2.4 kg |
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
E-Plan Macro
E-Plan Macro
Documentation
Documentation
Spare parts
DI-RA 116.6x48.9 ZEL PU FA-Xc10.01.38.08523Sealing frame
| Length L | 116.6 (mm) |
| Width B | 48.9 (mm) |
| Height H | 1.5 (mm) |
| Utilization design | FA-Xc |
VAM 40 V U BAR10.07.02.00046Vacuum gauge (manometer)
for analogue measurement and
monitoring of the vacuum
| Width B | 23 (mm) |
| Height H | 46 (mm) |
| Outside diameter D | 40 (mm) |
| Measuring range [bar] | -1,00 ... 0,00 bar |
| Shape manometers | Connection at bottom |
| Thread G1 | G1/8"-M |
| Weight | 0.06 (kg) |

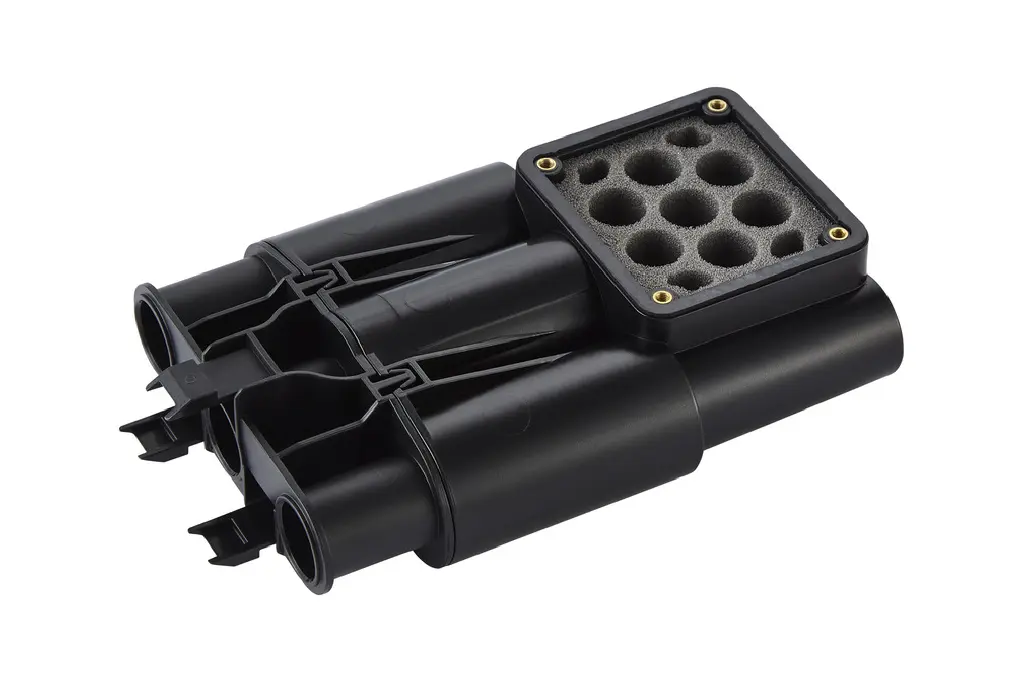

SD 141.9x96x40 FA-X10.01.38.08509Silencer for vacuum generators
| Length L | 141.9 (mm) |
| Width B | 96 (mm) |
| Height H | 40 (mm) |
| Utilization design | Vacuum area gripping systems FA-X |
DI-PL 442x128 3R18 LL-20x7 O20 KE10.01.38.07232Sealing plate
(FXP-i/FMP-i/FA-X/FA-M)
| Length L | 442 (mm) |
| Width B | 128 (mm) |
| Height H | 20 (mm) |
| Arrangement suction cells | 3 rows, 18 mm |
| Material type | Foam open, height 20 mm |
| Additional function area gripper | Adhesive tape on one side |
| Measuring range [bar] | bar |
| Weight | 0.075 (kg) |
Accessories
SET FA-X/FA-M 4NUTSTEIN10.01.38.09689Mounting set
| Utilization design | Vacuum area gripping systems FA-X/FA-M |
| contains | 4 sliding blocks |
SET FA-X/FA-M10.01.38.09732Mounting set
| Length L | 119 (mm) |
| Width B | 119 (mm) |
| Height H | 9.6 (mm) |
| Utilization design | Vacuum area gripping systems FA-X/FA-M |
MOD-FLAN 120x120 FA-X/FA-M10.01.38.09734Flange module
| Length L | 120 (mm) |
| Width B | 120 (mm) |
| Height H | 60 (mm) |
| Utilization design | Vacuum area gripping systems FA-X/FA-M |
MOD-FLAN 176.6x118 FA-X/FA-M10.01.38.10701Flange module
| Length L | 176.6 (mm) |
| Width B | 118 (mm) |
| Height H | 40 (mm) |
| Utilization design | Vacuum area gripping systems FA-X/FA-M |
FST-FLEX 50 HD1 G1/2-AG G3/8-IG10.01.10.05687Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 50 (mm) |
| Shape mounting elements | Heavy duty 1 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-STARR 50 HD1 G1/2-AG G3/8-IG10.01.10.05809Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 50 (mm) |
| Shape mounting elements | Heavy duty 1 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FLK G1/2-IG G1/2-AG10.01.03.00175Flexible suction cup mounting for
adaptation to sloping surfaces
| Thread G1 | G1/2"-F |
| Thread G2 | G1/2"-M |
| Operating temperature | 0 ... 70 °C |
FLAN-PL 120x85x10 ST FA-X/FA-M10.01.38.09746Flange plate
| Length L | 120 (mm) |
| Width B | 85 (mm) |
| Height H | 10 (mm) |
| Utilization design | Vacuum area gripping systems FA-X/FA-M |
| Material | Steel |
FLAN-PL 120x120x10 FA-X/FA-M10.01.38.09733Flange plate
| Length L | 120 (mm) |
| Width B | 120 (mm) |
| Height H | 10 (mm) |
| Utilization design | Vacuum area gripping systems FA-X/FA-M |
ASK B-M12-5 5000 K-5P21.04.05.00080Connection cable
| Electrical connection | Fem connect M12, 5 pol |
| Cable length | 5000 (mm) |
| Connection 2 | Cable, 5-pole |
| Material hose | PUR cable |
ASK B-M12-5 2000 S-M12-521.04.05.00211Connection cable
| Pressure range (operating pressure) [bar] | bar |
| Electrical connection | Fem connect M12, 5 pol |
| Cable length | 2000 (mm) |
| Connection 2 | Plug M12, 5-pole |
| Material hose | PUR cable |
