VEE 1xSPB1/SPF 42.3x42.3
Part no.: 10.01.36.00267
Assembled Vacuum End Effector VEE
| Number of suction plates | 1 |
| Suction cup type | SPB1/SPF |
| Length L | 42.3 (mm) |
| Width B | 42.3 (mm) |
Design Data
Design Data

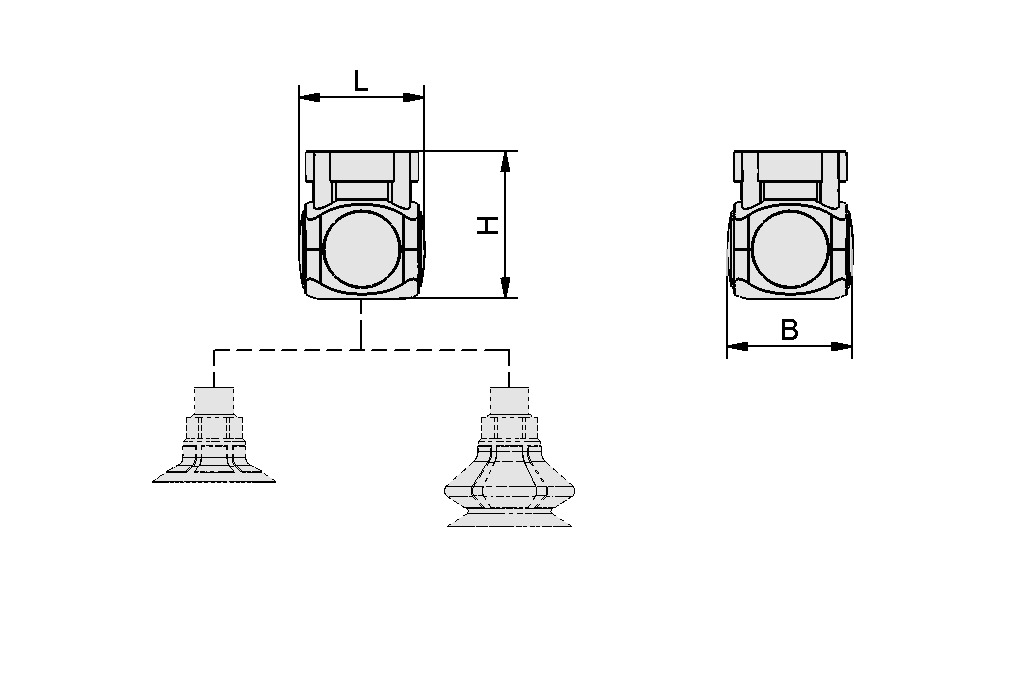

| Attribute | Value |
|---|---|
| B | 42.3 mm |
| H | 49.8 mm |
| L | 42.3 mm |
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Accessories
VEE-QCM 3210.01.36.00121VEE flange module with
quick-change adapter and
integrated vacuum line
| Length L1 | 32 (mm) |
| Dmk | 46 (mm) |
| Number of holes | 8 |
| Flow rate max. | 60 (m³/h) |
