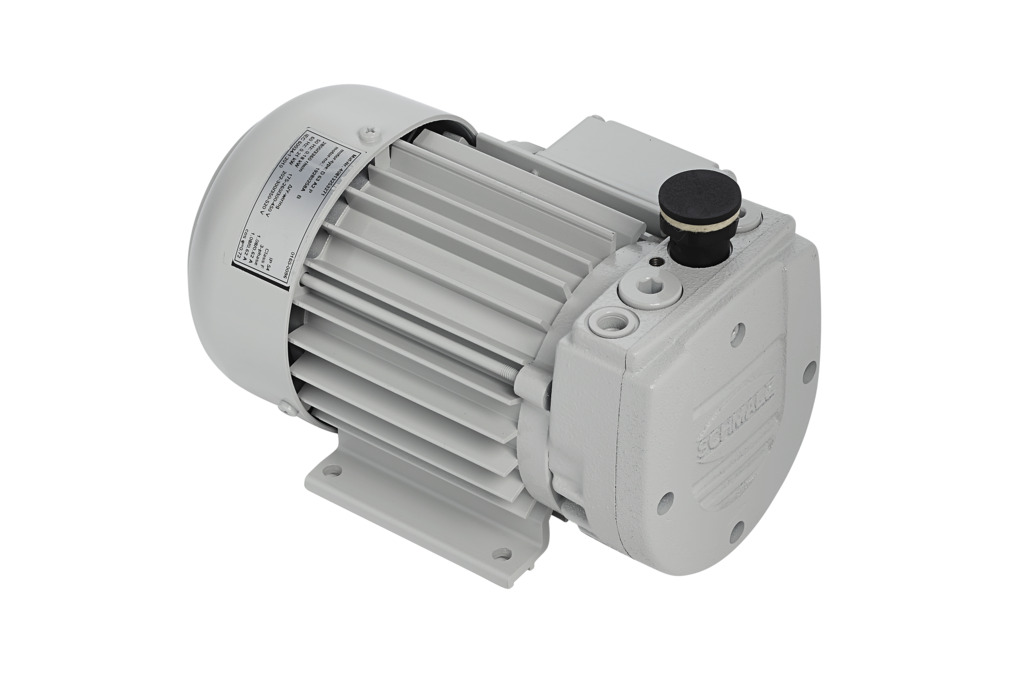

EVE-TR 8 AC3
Part no.: 10.03.01.00762
Oil-free pump with constant suction rate, robust, requires little maintenance
| Current type | Three phase A.C. |
| Sound pressure level at 50 Hz | 58 (dB(A)) |
| Voltage at 50 Hz | D175 - 260 V / Y300 - 450 V |
| Voltage 60 Hz | S013 |
| Voltage at 60 Hz | 200 - 300 V or 350 - 520 V |
| Suction rate (50 Hz) | 8 (m³/h) |
| Suction rate (60 Hz) | 9.1 (m³/h) |
| Vacuum (50 Hz) | -850 (mbar) |
| Rated power at 50 Hz | 0.37 (kW) |
| Rated power at 60 Hz | 0.44 (kW) |
| Approval | UL |
| Weight | 11.5 (kg) |

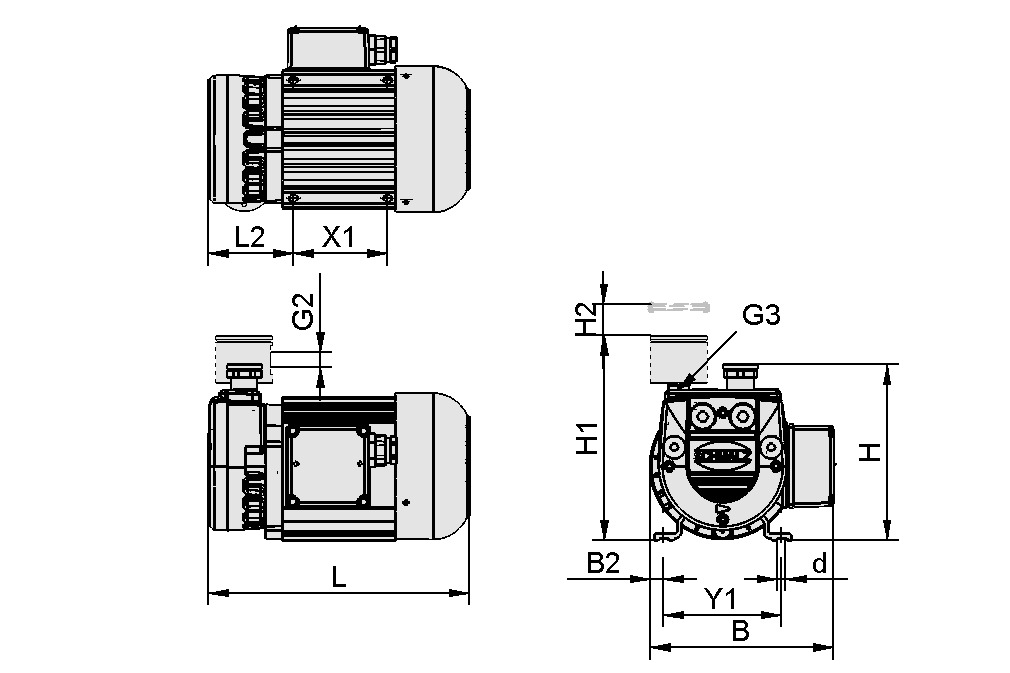

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 155 mm |
| B2 | 11.5 mm |
| d | 7 mm |
| G3 | G3/8"-F |
| H | 154 mm |
| L | 213.5 mm |
| L2 | 80 mm |
| X1 | 80 mm |
| Y1 | 100 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction rate (50 Hz) | 8 m³/h |
| Suction rate (60 Hz) | 9.1 m³/h |
| Voltage at 50 Hz | D175 - 260 V / Y300 - 450 V |
| Voltage at 60 Hz | 200 - 300 V or 350 - 520 V |
| Rated power at 50 Hz | 0.37 kW |
| Rated power at 60 Hz | 0.44 kW |
| Supply voltage | AC3 |
| Current type | Three phase A.C. |
| Sound pressure level at 50 Hz | 58 dB(A) |
| Weight | 11.5 kg |
| Protection type IP | IP 54 |
| Product family | EVE-TR |
Performance Data
Performance Data
Documentation
Documentation
Spare parts
FILT-EINS 50 28x51 PAP VF-3/810.07.01.00014Filter insert (round)
| Filter pore size | 50 (µm) |
| Outside diameter D | 27.5 (mm) |
| Length L | 50.5 (mm) |
| Filter material | Paper |
| Utilization design | Filter VF |
| Size | 3/8 |
Accessories
VBV -850...0 G3/8-AG EVE 4-810.03.01.00107Vacuum valve for limiting
the maximum vacuum pressure
| Outside diameter D | 23 (mm) |
| Max. vacuum | -850 (mbar) |
| Thread G1 | G3/8"-M |
| Length L | 45 (mm) |
| Utilization design | Pump EVE |
| Size | 4-8 |
- PHASE-OUT ITEM
VOL 510.03.03.00108Vacuum reservoir
| Reservoir volume | 5 (l) |
| Height H | 120 (mm) |
| Additional function vacuum reservoir | Gauge, non-return valve, filter |
