FSGA 33 NK-45 G1/4-AG DRFP120
Part no.: 10.01.06.06331
Bellows suction cup (round) with optimal adaptation to uneven surfaces
Industries: Wood
| Size | 33 |
| Number of folds | 1.5 |
| Suction cup material | Natural rubber NK |
| Material hardness [Shore A] | 45 (Shore A) |
| Nipple material | Aluminum |
| Additional function suction cup | with sealing ring and flight pin 120 |

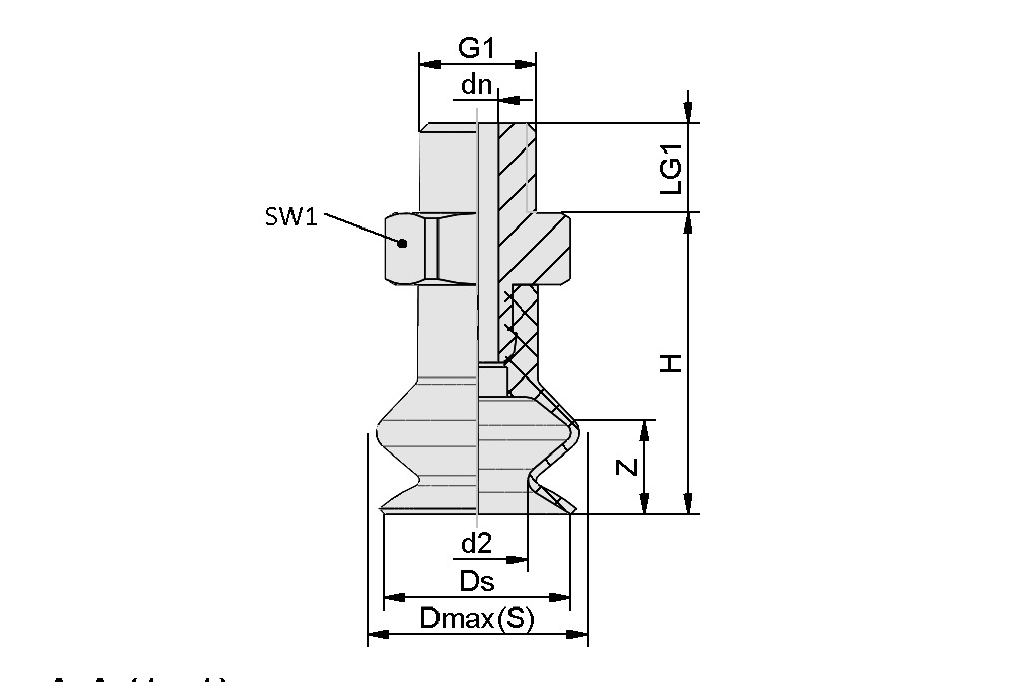

Design Data
Design Data
| Attribute | Value |
|---|---|
| Additional function suction cup | with sealing ring and flight pin 120 |
| H | 31 mm |
| dn | 1.1 mm |
| d2 | 17 mm |
| G1 | G1/4"-M |
| LG1 | 11 mm |
| SW1 | 17 mm |
| Z (Stroke) | 9 mm |
| Ds | 30 mm |
| Dmax(S) | 38 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Number of folds | 1.5 |
| Size | 33 |
| Suction cup material | Natural rubber NK |
| Material hardness [Shore A] | 45 Shore A |
| Suction force (-600mbar) | 12.6 N |
| Product family | FSGA |
| Weight | 16 g |
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Spare parts
FGA 33 NK-45 N018 DR10.01.06.04245Bellows suction cup (round)
with optimal adaptation to uneven
surfaces
| Size | 33 |
| Suction cup material | Natural rubber NK |
| Material hardness [Shore A] | 45 (Shore A) |
| Number of folds | 1.5 |
- NEW
SVN-FP-120 G1/4-AG N01810.05.03.00411Connection nipple with integrated
flow-limiting pin
| Thread G1 | G1/4"-M |
| Key width SW1 | 17 (mm) |
| Nipple family | N 018 |
- NEW
FP 12010.05.04.00173Flight pen with integrated
flow limiter
| Nominal diameter dn | 120 (mm) |
| Packaging unit | 20 pieces |
