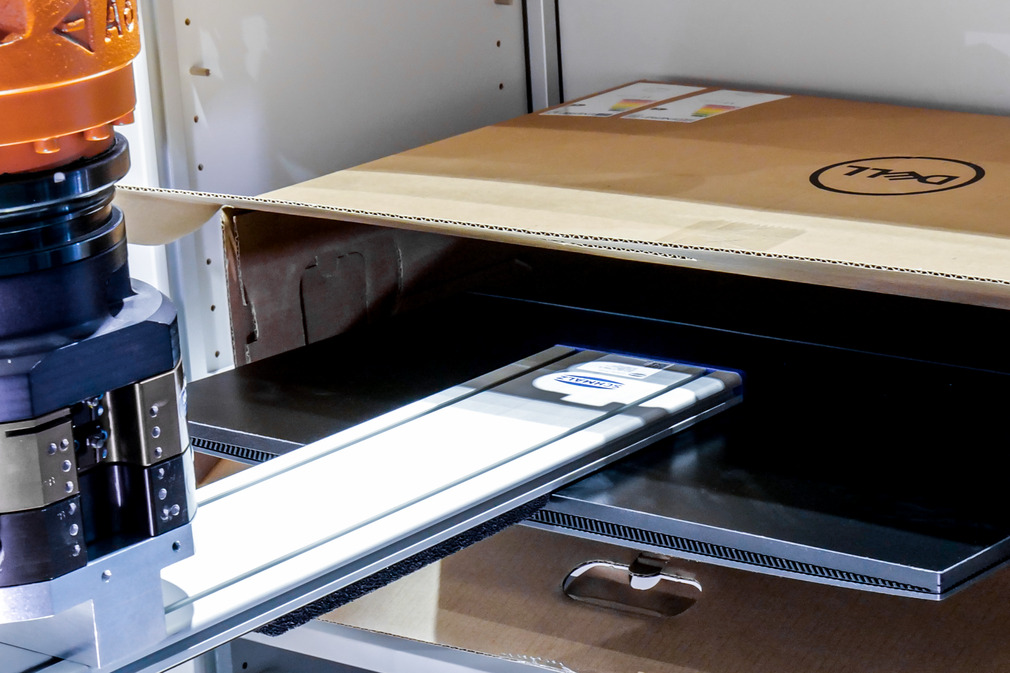

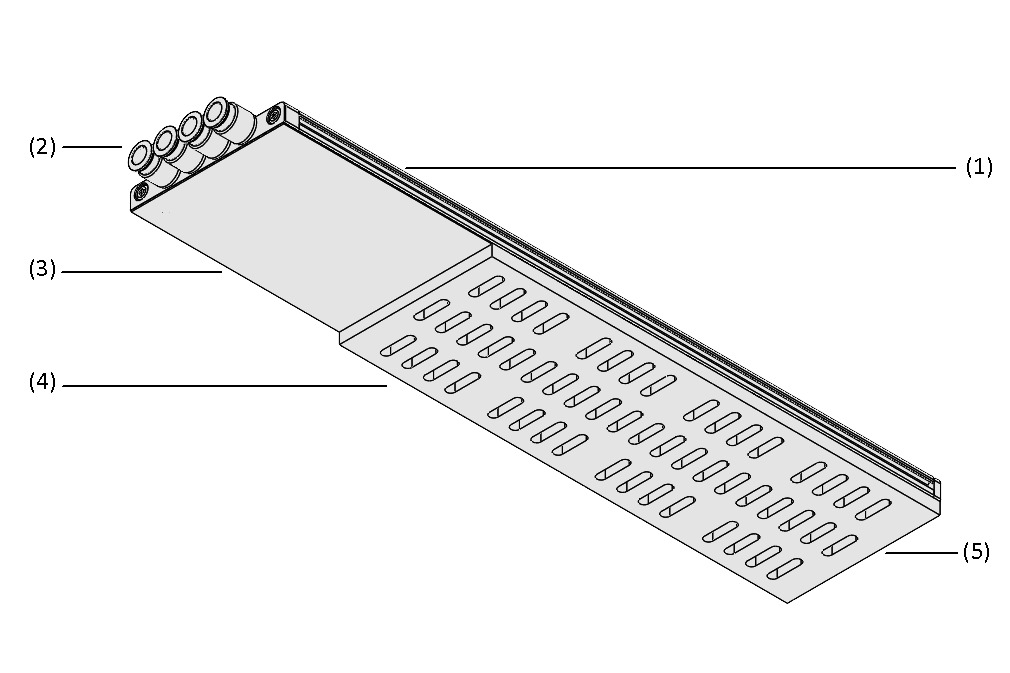

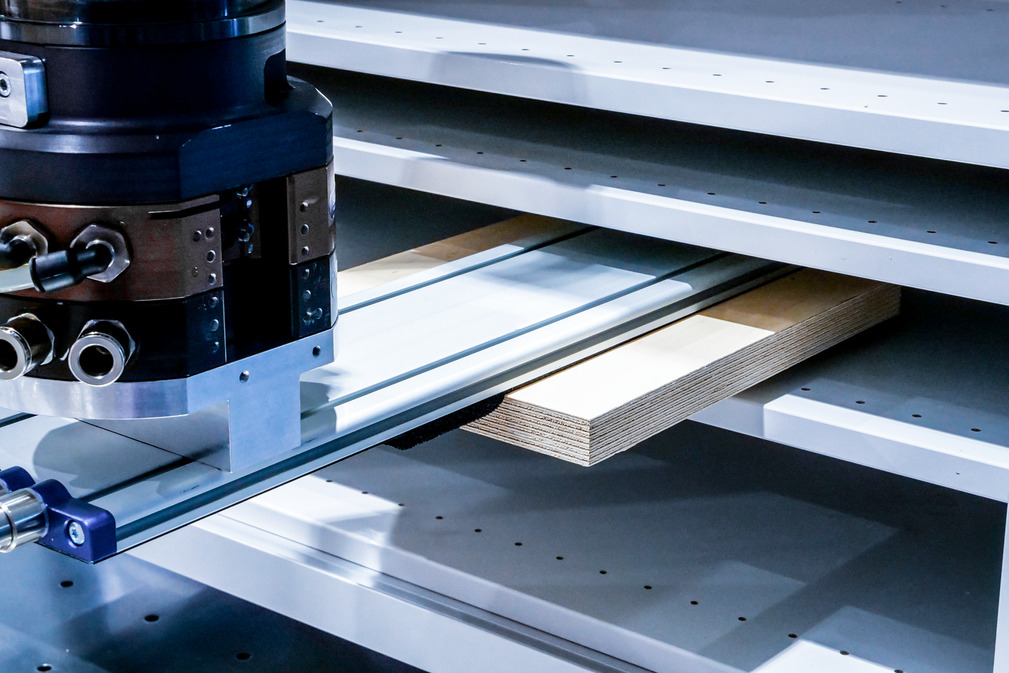

Low overall height with 16.5 mm base section height enables use in areas with critical interference contours
Low gripper weight, high effective lift capacity and dynamic handling thanks to modular lightweight design
High energy efficiency and low operating costs due to integrated gripper segmentation into individually switchable and controllable zones
High-performance sealing foam with excellent sealing properties and long service life
Sealing foam with quick-change adhesive film for effortless replacement without time-consuming cleaning work
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
1 - 8 from 8 results

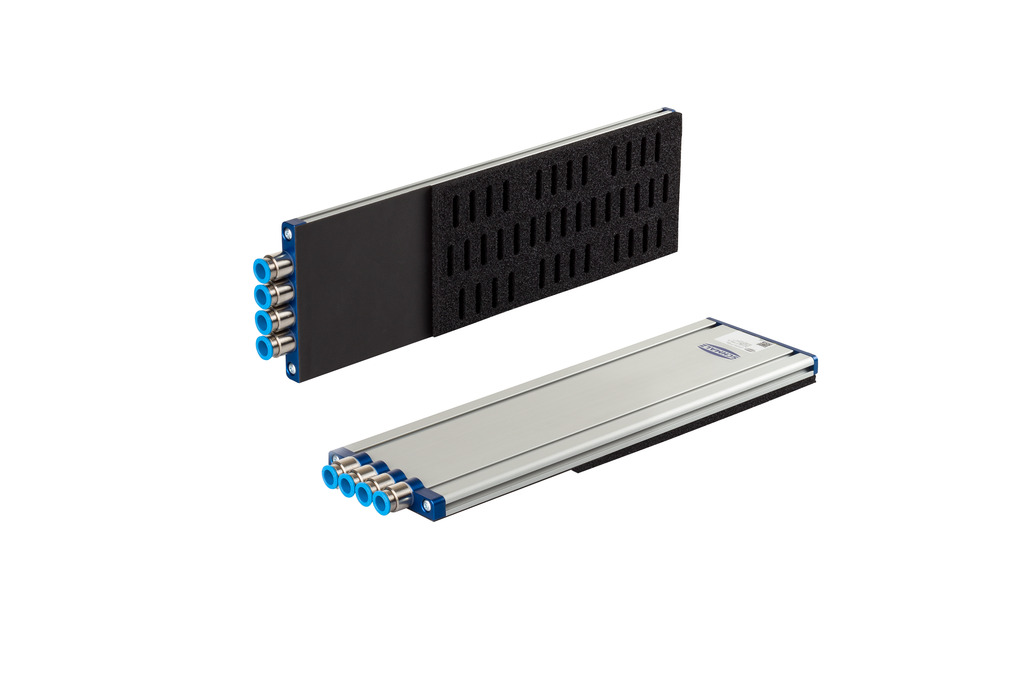

Part no.: 10.01.46.00114
Vacuum area gripping system for external vacuum generator, with flow resistors
| Length L | 352 (mm) |
| Width B | 130 (mm) |
| Height H | 26.5 (mm) |
| Shape | 1x passive zone / 2x suction zone |
| Length L4 | 144 (mm) |
| Length L5 | 90 (mm) |
| Arrangement suction cells | 3 rows, 18 mm |
| Nominal diameter dn | 12 (mm) |
| Weight | 1.2 (kg) |

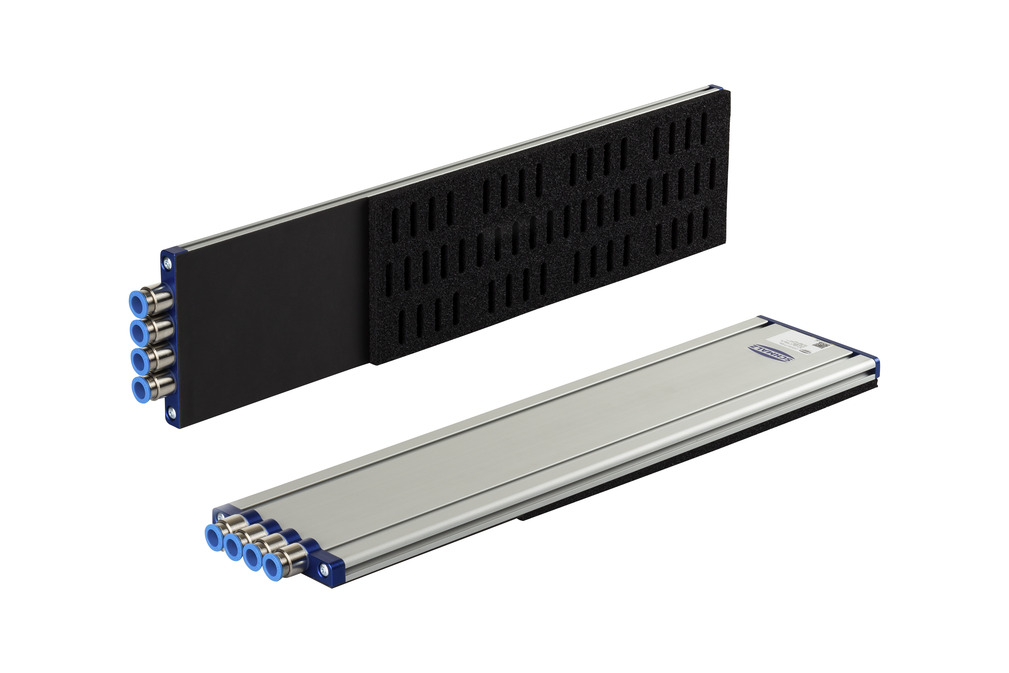

Part no.: 10.01.46.00131
Vacuum area gripping system for external vacuum generator, with flow resistors
| Length L | 550 (mm) |
| Width B | 130 (mm) |
| Height H | 26.5 (mm) |
| Shape | 1x passive zone / 4x suction zone |
| Length L4 | 162 (mm) |
| Length L5 | 90 (mm) |
| Arrangement suction cells | 3 rows, 18 mm |
| Nominal diameter dn | 12 (mm) |
| Weight | 1.8 (kg) |
Part no.: 10.01.46.00124
Vacuum area gripping system for external vacuum generator, with flow resistors
| Length L | 748 (mm) |
| Width B | 130 (mm) |
| Height H | 26.5 (mm) |
| Shape | 1x passive zone / 4x suction zone |
| Length L4 | 144 (mm) |
| Length L5 | 144 (mm) |
| Arrangement suction cells | 3 rows, 18 mm |
| Nominal diameter dn | 12 (mm) |
| Weight | 2.4 (kg) |

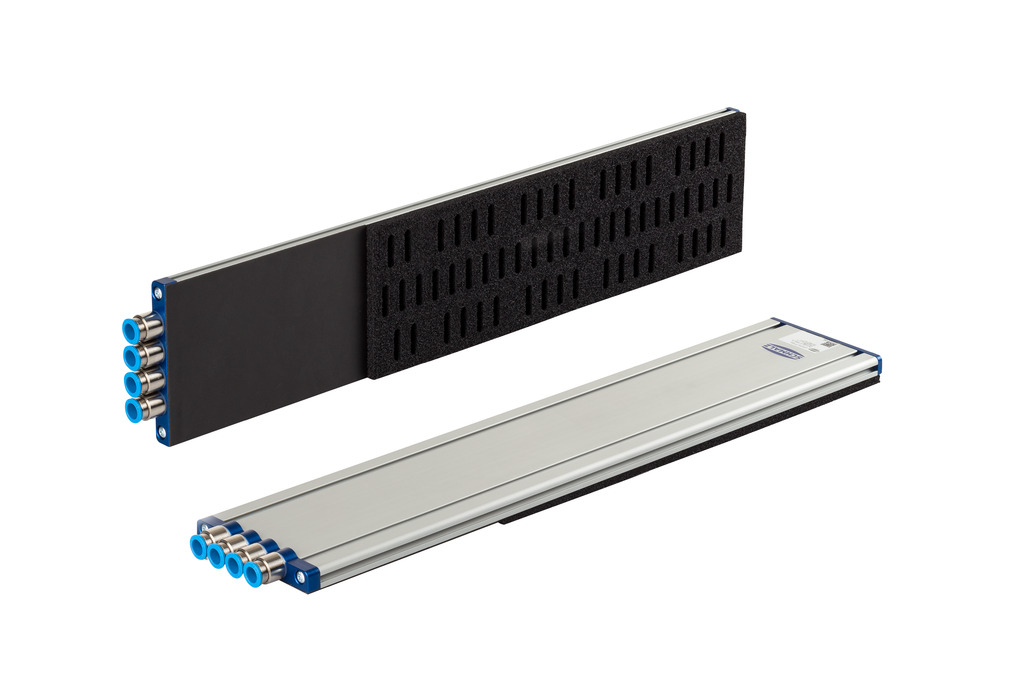

Part no.: 10.01.46.00128
Vacuum area gripping system for external vacuum generator, with flow resistors
| Length L | 748 (mm) |
| Width B | 130 (mm) |
| Height H | 26.5 (mm) |
| Shape | 1x passive zone / 4x suction zone |
| Length L4 | 144 (mm) |
| Length L5 | 144 (mm) |
| Arrangement suction cells | 5 rows, 18 mm |
| Nominal diameter dn | 12 (mm) |
| Weight | 2.4 (kg) |
Part no.: 10.01.46.00121
Vacuum area gripping system for external vacuum generator, with flow resistors
| Length L | 352 (mm) |
| Width B | 130 (mm) |
| Height H | 26.5 (mm) |
| Shape | 1x passive zone / 2x suction zone |
| Length L4 | 144 (mm) |
| Length L5 | 90 (mm) |
| Arrangement suction cells | 5 rows, 18 mm |
| Nominal diameter dn | 12 (mm) |
| Weight | 1.2 (kg) |
Part no.: 10.01.46.00105
Vacuum area gripping system for external vacuum generator, with flow resistors
| Length L | 352 (mm) |
| Width B | 130 (mm) |
| Height H | 26.5 (mm) |
| Shape | 1x passive zone / 1x suction zone |
| Length L4 | 144 (mm) |
| Length L5 | 180 (mm) |
| Arrangement suction cells | 3 rows, 18 mm |
| Nominal diameter dn | 12 (mm) |
| Weight | 1.2 (kg) |
Part no.: 10.01.46.00134
Vacuum area gripping system for external vacuum generator, with flow resistors
| Length L | 550 (mm) |
| Width B | 130 (mm) |
| Height H | 26.5 (mm) |
| Shape | 1x passive zone / 4x suction zone |
| Length L4 | 162 (mm) |
| Length L5 | 90 (mm) |
| Arrangement suction cells | 5 rows, 18 mm |
| Nominal diameter dn | 12 (mm) |
| Weight | 1.8 (kg) |
Part no.: 10.01.46.00117
Vacuum area gripping system for external vacuum generator, with flow resistors
| Length L | 352 (mm) |
| Width B | 130 (mm) |
| Height H | 26.5 (mm) |
| Shape | 1x passive zone / 1x suction zone |
| Length L4 | 144 (mm) |
| Length L5 | 180 (mm) |
| Arrangement suction cells | 5 rows, 18 mm |
| Nominal diameter dn | 12 (mm) |
| Weight | 1.2 (kg) |
