FEL SW60 550 5R18 O10 G12 PZ4
Part no.: 10.01.46.00134
Vacuum area gripping system for external vacuum generator, with flow resistors
| Length L | 550 (mm) |
| Width B | 130 (mm) |
| Height H | 26.5 (mm) |
| Shape | 1x passive zone / 4x suction zone |
| Length L4 | 162 (mm) |
| Length L5 | 90 (mm) |
| Arrangement suction cells | 5 rows, 18 mm |
| Nominal diameter dn | 12 (mm) |
| Weight | 1.8 (kg) |

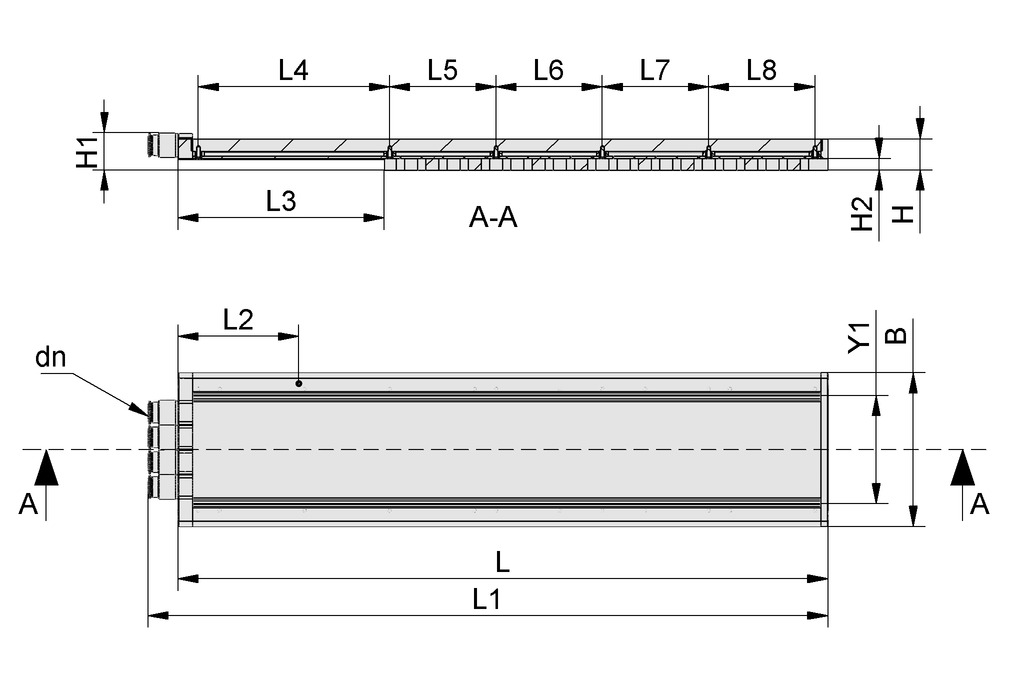

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 130 mm |
| dn | 12 mm |
| H | 26.5 mm |
| H1 | 31.3 mm |
| H2 | 10 mm |
| L | 550 mm |
| L1 | 575.7 mm |
| L2 | 112 mm |
| L3 | 174.5 mm |
| L4 | 162 mm |
| L5 | 90 mm |
| L6 | 90 mm |
| L7 | 90 mm |
| L8 | 90 mm |
| Y1 | 90 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Shape | 1x passive zone / 4x suction zone |
| Suction force at -300 mbar | 200 N |
| Nozzle diameter | 0.6 mm |
| Arrangement suction cells | 5 rows, 18 mm |
| Number of suction cells | 84 |
| Required suction capacity for pu = -0.3 bar | 227 l/min |
| Weight | 1.8 kg |
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Spare parts
DI-PL 88.5x10 ZEL10.01.46.00071Sealing plate for area gripper FEL
| Length L | 88.5 (mm) |
| Width B | 10 (mm) |
| Height H | 8 (mm) |
| Additional function area gripper | Adhesive tape on one side |
| Utilization design | Vacuum area gripping system |
HUEL 5.4-3.4x4-FEL10.01.46.00073Sleeve
| Outside diameter D | 5.4 (mm) |
| Internal diameter d | 3.4 (mm) |
| Length L | 4 (mm) |
| Utilization design | Vacuum area gripping system |
DI-SCHN 2.5 NBR-7010.07.04.00166Sealing cord
| Outside diameter D | 2.5 (mm) |
| Material hardness [Shore A] | 70 (Shore A) |
| Sealing material | Nitrile rubber |
DI-PL 84.9x9.3 ZEL PU KE FEL10.01.46.00043Sealing plate
| Length L | 84.9 (mm) |
| Width B | 9.3 (mm) |
| Height H | 2 (mm) |
| Sealing material | Polyurethane PU |
| Additional function area gripper | Adhesive tape on one side |
| Utilization design | Vacuum area gripping system |
SCHR WN1552 5x20 ST VZ T2520.10.03.00008Counter sink screw
| Outside diameter D | 5 (mm) |
| Material | Steel |
| Length L | 20 (mm) |
| Surface | galvanised |
| Weight | 3.9 (g) |
DI-PL 375.5x128 5R18 LL-12x5 O10 PZ410.01.46.00133Sealing plate for area gripper FEL
| Length L | 375.5 (mm) |
| Width B | 128 (mm) |
| Height H | 10 (mm) |
| Material type | Foam O, Height 10 mm |
| Additional function area gripper | Adhesive tape on one side |
| Utilization design | Vacuum area gripping system |
DI-PL 174.5x128 P0910.01.46.00100Sealing plate for area gripper FEL
| Length L | 174.5 (mm) |
| Width B | 128 (mm) |
| Height H | 0.9 (mm) |
| Material type | Foam P, Height 0,9 mm |
| Additional function area gripper | Adhesive tape on one side |
| Utilization design | Vacuum area gripping system |
Accessories
MOD-FLAN 130x90 FEL10.01.46.00136Flange module
| Length L | 130 (mm) |
| Width B | 90 (mm) |
| Height H | 84 (mm) |
| Utilization design | Vacuum area gripping system |
| Weight | 0.681 (kg) |
SMPi 25 NO RD M12-510.02.02.03363Compact ejector "MEGA PUMP" with
power blow-off function
| Nozzle diameter | 2.5 (mm) |
| Suction rate (max.) | 185 (l/min) |
| Air consumption suction | 290 (l/min) |
| Pressure range (operating pressure) [bar] | 4.0 ... 7.0 bar |
| Max. vacuum | -850 (mbar) |
| Control valve | Normally open |
| Functionality of the ejector | Digital air-saving function |
| Electrical connection | Male connect M12, 5 pol |
| Protection type IP | IP 65 |
ASK B-M12-5 5000 K-5P21.04.05.00080Connection cable
| Electrical connection | Fem connect M12, 5 pol |
| Cable length | 5000 (mm) |
| Connection 2 | Cable, 5-pole |
| Material hose | PUR cable |
GP 2 SMP 15..30/SCP 20..3010.02.02.00917Compressed air distributor for
use as a manifold and for
building ejector blocks
| Pressure range (operating pressure) [bar] | bar |
| Number of connections | 2 |
| Length L | 78 (mm) |
| Width B | 38 (mm) |
| Height H | 49.5 (mm) |
| Internal diameter d | 7 (mm) |
GP 3 SMP 15..25/SCP 20..2510.02.02.00918Compressed air distributor for
use as a manifold and for
building ejector blocks
| Pressure range (operating pressure) [bar] | bar |
| Number of connections | 3 |
| Length L | 101 (mm) |
| Width B | 38 (mm) |
| Height H | 49.5 (mm) |
| Internal diameter d | 7 (mm) |
GP 4 SMP 15..20/SCP 2010.02.02.00919Compressed air distributor for
use as a manifold and for
building ejector blocks
| Pressure range (operating pressure) [bar] | bar |
| Number of connections | 4 |
| Length L | 124 (mm) |
| Width B | 38 (mm) |
| Height H | 49.5 (mm) |
| Internal diameter d | 7 (mm) |
NUT-STEI 11.5x8 M4-IG25.09.06.00153Nut for profile slot
| Length L | 11.5 (mm) |
| Width B | 8 (mm) |
| Height H | 4.5 (mm) |
| Thread G1 | M4-F |
NUT-STEI 17x10.6 M6-IG25.09.06.00048Nut for profile slot
| Length L | 17 (mm) |
| Width B | 10.6 (mm) |
| Height H | 6.4 (mm) |
| Thread G1 | M6-F |
| Shape mounting elements | half-round |
